Tungaloy

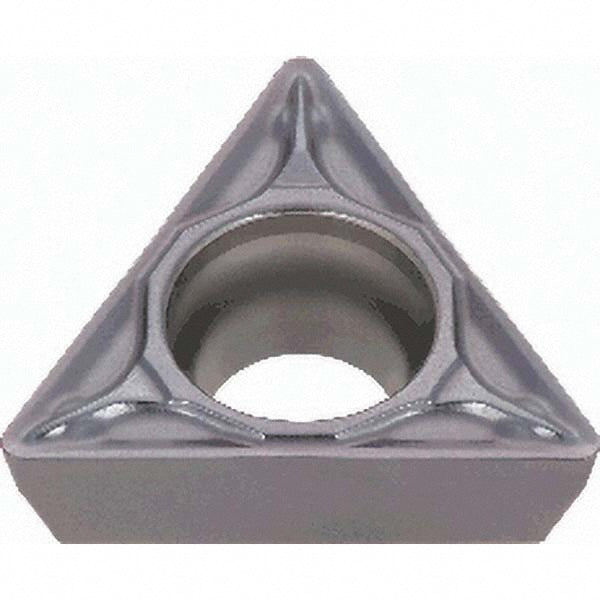

TPMT110208-PS Carbide Insert, Grade T9225, Titanium - Tungaloy 6781211
MFR# 6781211ISO/ANSI# TPMT110208Series TPMT-PS
$10.63List $13.40
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeT - Triangle
GradeT9225
MaterialCarbide
CoatingTitanium
Description
The Tungaloy 6781211 is a TPMT110208-PS carbide indexable insert, grade T9225, Titanium coated. Suited for steel, stainless steel, cast iron.
Specifications
Ansi insert codeTPMT21.52
Ansi size code21.52
Chip breakerPS
Chip breaker operationFinishing; Medium Machining
Clearance codeP
Coating finishTitanium
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1100
Included angle60
Industry standard numberTPMT 21.52 PS
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.4330
Insert materialCarbide
Insert shapeT - Triangle
Insert size code21.52
Insert styleTPMT
Insert thickness in3/32
Iso codeTPMT110208-PS
Iso insert codeTPMT110208
Iso size code110208
Length range0.4000 - 0.5000
Manufacturers catalog number6781211
Manufacturer gradeT9225
Material gradeP15; P25
Maximum depth of cut0.0984
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle10
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.4330
Wiper edgeNo
