Tungaloy

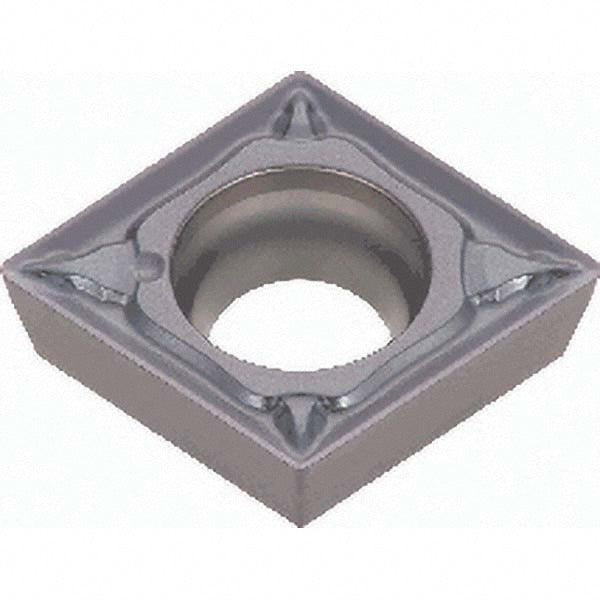

CPMT09T308-PS Carbide Insert, Grade T9225, Titanium - Tungaloy 6781290
MFR# 6781290ISO/ANSI# CPMT 32.52 PSSeries CPMT-PS
$14.69List $18.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 80
GradeT9225
MaterialCarbide
CoatingTitanium
Description
The Tungaloy 6781290 is a CPMT09T308-PS carbide indexable insert, grade T9225, Titanium coated. Suited for steel, stainless steel, cast iron.
Specifications
Chip breakerPS
Clearance codeP
Coating finishTitanium
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle80degree
Industry standard numberCPMT 32.52 PS
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3820
Insert materialCarbide
Insert shapeDiamond 80
Insert size code32.52
Insert styleCPMT
Insert thickness in5/32
Iso codeCPMT09T308-PS
Length range0.3000 - 0.4000
Manufacturers catalog number6781290
Manufacturer gradeT9225
Material gradeP15; P25
Maximum depth of cut0.0984
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakePositive
Rake angle10
Relief angle11
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
