SWMT1506UER-MM AH3135 Solid Carbide Insert, Grade AH3135, TiAlN - Tungaloy 6789486

Tungaloy

SWMT1506UER-MM AH3135 Solid Carbide Insert, Grade AH3135, TiAlN - Tungaloy 6789486

MFR# 6789486ISO/ANSI# SWMT1506UER-MM AH3135Cat# SWMT1506UER-MMSeries SWMT

$31.46List $40.35 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC41/64
ShapeSquare
GradeAH3135
MaterialSolid Carbide
CoatingTiAlN

Description

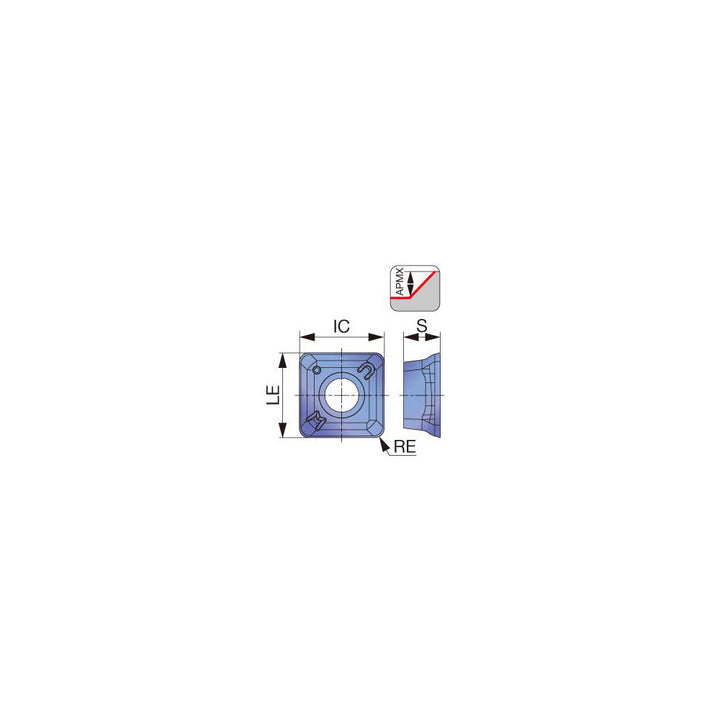

The Tungaloy 6789486 is a SWMT1506UER-MM AH3135 solid carbide indexable insert, grade AH3135, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.

Specifications

Ansi codeSWMT1506UER-MM AH3135
Chip breakerMM
Coating finishTiAlN
Coating processPVD
Corner radius0.0787
Cutter series compatibilityEPA15; TPA15; TLA15-M; TLA15-S; TLA15-BT; C-EPA; C-TLA
Cutting edge effective length0.6410
Cutting edge styleHoned
Included angle degree90
Inscribed circle in41/64
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size15
Insert size code1506
Insert styleSWMT
Iso codeSWMT1506UER-MM AH3135
Length in41/64
Length range0.6000 to 0.6500
Manufacturers catalog numberSWMT1506UER-MM
Manufacturer gradeAH3135
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP30; M30
Maximum depth of cut0.0790
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakePositive
Relief angle18.50
Single or double sided insertSingle
StandardsISO
Thickness0.2680
Thickness range0.2500 to 0.3500
Width in41/64
