Tungaloy

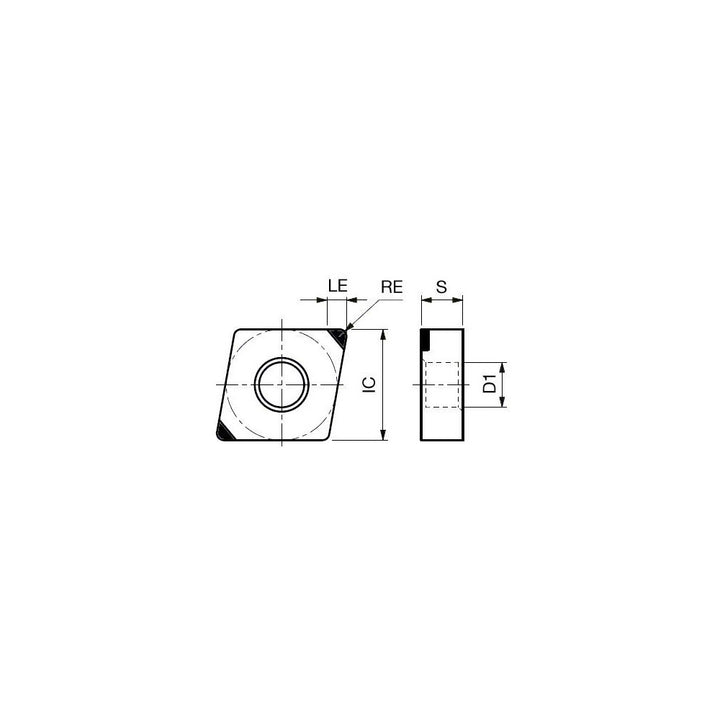

2QP-CNGA120402 BXA20 PCBN Insert, Grade BXA20, TiAlN - Tungaloy 6791042
MFR# 6791042ISO/ANSI# CNGA120402Series 2QP-CNM/GA
$68.61List $78.45
Save 12%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeBXA20
MaterialPCBN
CoatingTiAlN
Description
The Tungaloy 6791042 is a 2QP-CNGA120402 BXA20 pcbn indexable insert, grade BXA20, TiAlN coated. Suited for hard material.
Specifications
Ansi insert codeCNGA430.5
Ansi size code430.5
Chip breakerFlat Top
Chip breaker operationFinishing
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Grade characteristicsHardened Materials (H) - High Wear-Resistance
Hole diameter0.2030
Included angle80
Industry standard number2QP-CNGA 430.5
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialPCBN
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code430.5
Insert styleCNGA
Insert thickness in3/16
Iso code2QP-CNGA120402 BXA20
Iso insert codeCNGA120402
Iso size code120402
Length range0.5000 - 0.6000
Manufacturers catalog number6791042
Manufacturer gradeBXA20
Material gradeMedium Grain
Maximum depth of cut0.0197
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0910
Tolerance codeG
Width in1/2
Wiper edgeNo
