Tungaloy

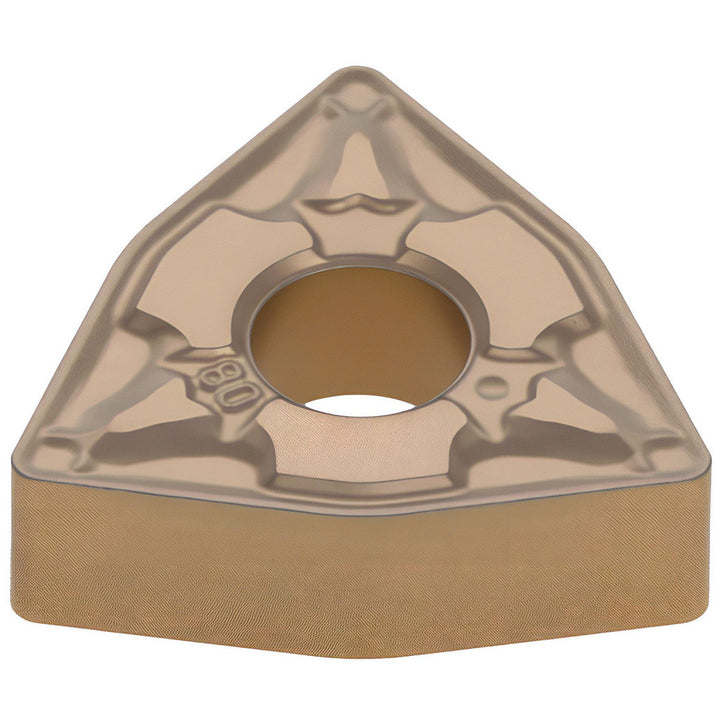

WNMG080408-PM Carbide Insert, Grade T9215, TiCN - Tungaloy 6796102
MFR# 6796102ISO/ANSI# WNMG 432 PMSeries WNMG-PM
$15.23List $19.20
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeT9215
MaterialCarbide
CoatingTiCN
Description
The Tungaloy 6796102 is a WNMG080408-PM carbide indexable insert, grade T9215, TiCN coated. Suited for steel, stainless steel, cast iron.
Specifications
Chip breakerPM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberWNMG 432 PM
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6860
Insert materialCarbide
Insert shapeTrigon
Insert size code432
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG080408-PM
Length range0.6500 - 0.7000
Manufacturers catalog number6796102
Manufacturer gradeT9215
Material gradeP10; P20
Maximum depth of cut0.2165
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Rake angle7
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6860in
Wiper edgeNo
