Tungaloy

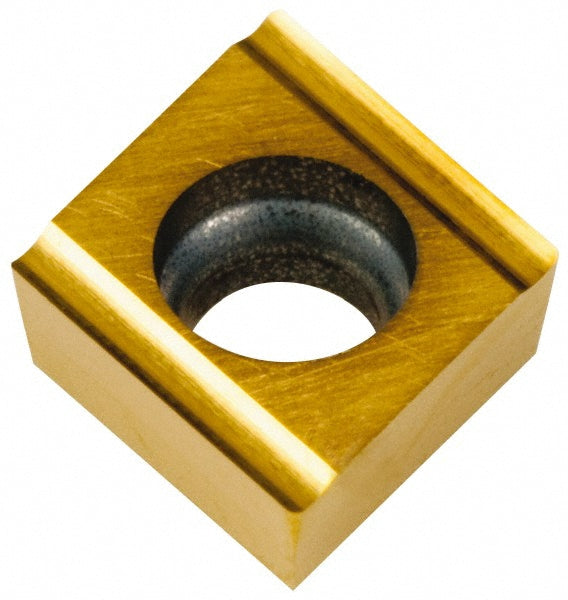

CCGT060202FL Carbide Insert, Grade J740, TiN - Tungaloy 6801276
MFR# 6801276ISO/ANSI# CCGT 21.50.5 FL-J10Series CCGTL-J10
$21.16List $27.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 80
GradeJ740
MaterialCarbide
CoatingTiN
Description
The Tungaloy 6801276 is a CCGT060202FL carbide indexable insert, grade J740, TiN coated. Suited for steel, stainless steel.
Specifications
Chip breakerJ10
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1100
Included angle80degree
Industry standard numberCCGT 21.50.5 FL-J10
Inscribed circle in1/4
Insert handLeft Hand
Insert holding methodScrew
Insert length0.2560
Insert materialCarbide
Insert shapeDiamond 80
Insert size code21.50.5
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT060202FL
Length range0.0000 - 0.3000
Manufacturers catalog number6801276
Manufacturer gradeJ740
Material gradeUltra Fine Grain
Maximum depth of cut0.1654
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle30
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
