Tungaloy

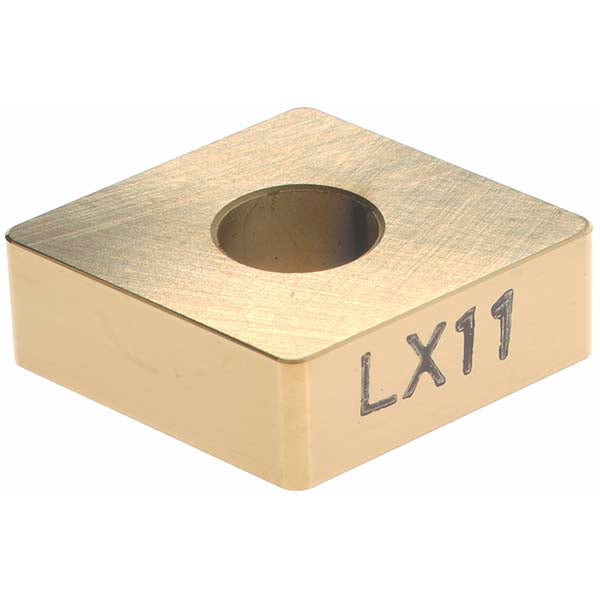

CNGA 432 Ceramic Insert, Grade LX11, TiN - Tungaloy 6801833
MFR# 6801833ISO/ANSI# CNGA120408Series CNM/GA
$20.86List $26.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeLX11
MaterialCeramic
CoatingTiN
Description
The Tungaloy 6801833 is a CNGA 432 ceramic indexable insert, grade LX11, TiN coated. Suited for hard material.
Specifications
Ansi insert codeCNGA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFinishing
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard numberCNGA 432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCeramic
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA 432
Iso insert codeCNGA120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number6801833
Manufacturer gradeLX11
Material gradeAlumina TiC
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
