Tungaloy

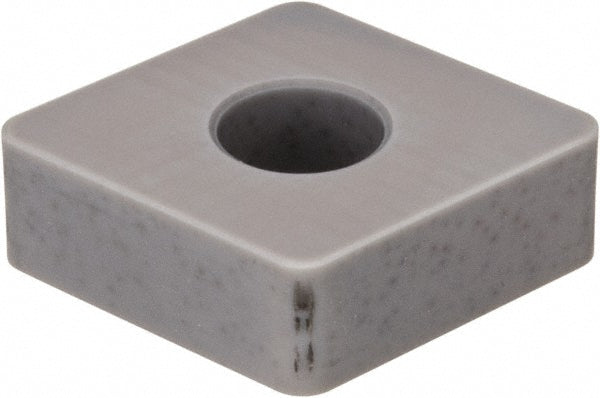

CNMA433 Ceramic Insert, Grade FX105 - Tungaloy 6801921
MFR# 6801921ISO/ANSI# CNMA 433Series CNM/GA
$14.88List $18.75
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeFX105
MaterialCeramic
Description
The Tungaloy 6801921 is a CNMA433 ceramic indexable insert, grade FX105. Suited for cast iron.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating processUncoated
Corner radius in3/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMA 433
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCeramic
Insert shapeDiamond 80
Insert size code433
Insert styleCNMA
Insert thickness in3/16
Iso codeCNMA433
Length range0.5000 - 0.6000
Manufacturers catalog number6801921
Manufacturer gradeFX105
Material gradeSilicon Nitride
Maximum depth of cut0.1181
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
