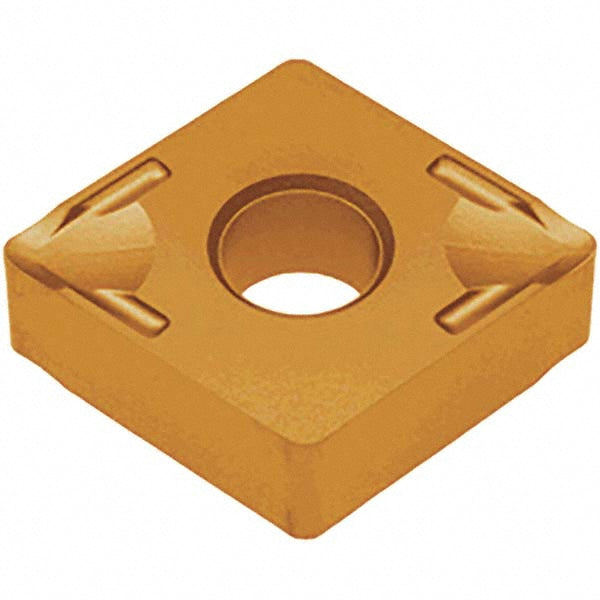

CNMG431SS Carbide Insert, Grade GH330, TiCNO - Tungaloy 6802012
MFR# 6802012ISO/ANSI# CNMG 431 SSSeries CNMG-SS
$16.10List $20.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeGH330
MaterialCarbide
CoatingTiCNO
Description
The Tungaloy 6802012 is a CNMG431SS carbide indexable insert, grade GH330, TiCNO coated. Suited for steel, stainless steel, cast iron.
Specifications
Chip breakerSS
Clearance codeN
Coating finishTiCNO
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG 431 SS
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG431SS
Length range0.5000 - 0.6000
Manufacturers catalog number6802012
Manufacturer gradeGH330
Material gradeP15; P30; M15; M30; K05; K30
Maximum depth of cut0.1181
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
