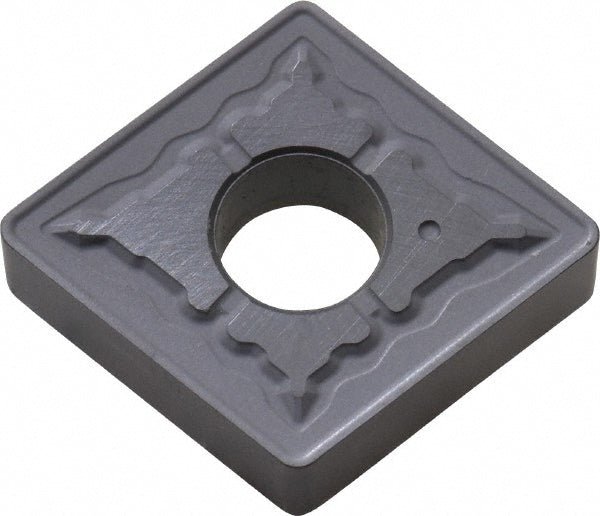

CNMG 643 TH Carbide Insert, Grade AH120, TiAlN - Tungaloy 6802295

Tungaloy

CNMG 643 TH Carbide Insert, Grade AH120, TiAlN - Tungaloy 6802295

MFR# 6802295ISO/ANSI# CNMG 643 THSeries CNMG-TH

$31.93List $40.95 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/4
ShapeDiamond 80
GradeAH120
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6802295 is a CNMG 643 TH carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Chip breakerTH
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.3120
Included angle80degree
Industry standard numberCNMG 643 TH
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7600
Insert materialCarbide
Insert shapeDiamond 80
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 643 TH
Length range0.7000 - 10.0000
Manufacturers catalog number6802295
Manufacturer gradeAH120
Material gradeP15; P25; M15; M25; K15; K30; S10; S25
Maximum depth of cut0.2362
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle-20
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/4in
Wiper edgeNo
