Tungaloy

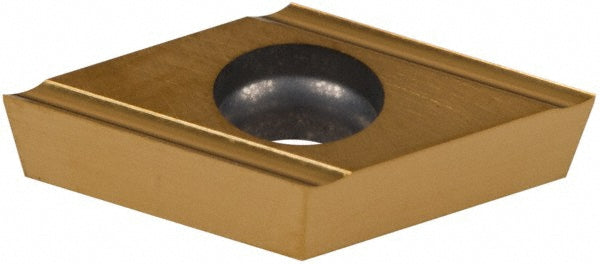

DCGT070200FRJ10 Carbide Insert, Grade J740, TiN - Tungaloy 6802766
MFR# 6802766ISO/ANSI# DCGT 21.5V FR-J10Series DCGTR-J10
$22.18List $28.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond 55
GradeJ740
MaterialCarbide
CoatingTiN
Description
The Tungaloy 6802766 is a DCGT070200FRJ10 carbide indexable insert, grade J740, TiN coated. Suited for steel, stainless steel.
Specifications
Chip breakerJ10
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius0.0010
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1100
Included angle55degree
Industry standard numberDCGT 21.5V FR-J10
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodScrew
Insert length0.6140
Insert materialCarbide
Insert shapeDiamond 55
Insert size code21.5
Insert styleDCGT
Insert thickness in3/32
Iso codeDCGT070200FRJ10
Length range0.6000 - 0.6500
Manufacturers catalog number6802766
Manufacturer gradeJ740
Material gradeUltra Fine Grain
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle30
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width in1/4in
Wiper edgeNo
