Tungaloy

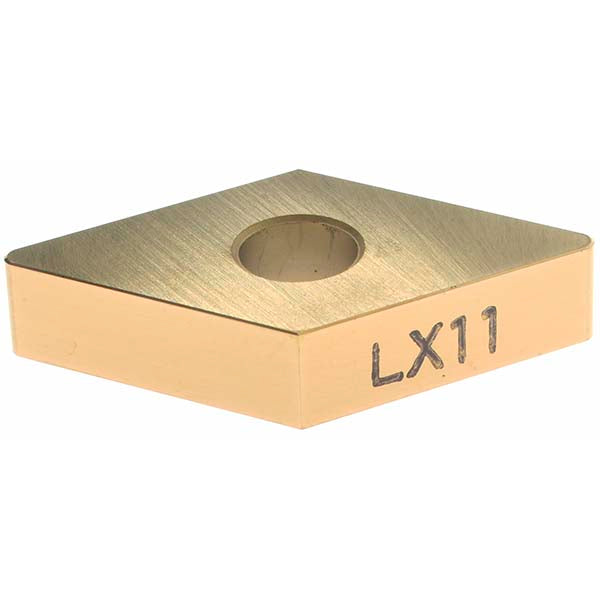

DNGA 432 Ceramic Insert, Grade LX11, TiN - Tungaloy 6803163
MFR# 6803163ISO/ANSI# DNGA150408Series DNM/GA
$24.95List $32.00
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeD - Diamond (Rhombic) 55-Deg
GradeLX11
MaterialCeramic
CoatingTiN
Description
The Tungaloy 6803163 is a DNGA 432 ceramic indexable insert, grade LX11, TiN coated. Suited for hard material.
Specifications
Ansi insert codeDNGA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFinishing
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle55
Industry standard numberDNGA 432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2200
Insert materialCeramic
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code432
Insert styleDNGA
Insert thickness in3/16
Iso codeDNGA 432
Iso insert codeDNGA150408
Iso size code150408
Length range0.7000 - 10.0000
Manufacturers catalog number6803163
Manufacturer gradeLX11
Material gradeAlumina TiC
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialHard Material
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
