DNGG432-FLP Carbide Insert, Grade TH10 - Tungaloy 6803216

Tungaloy

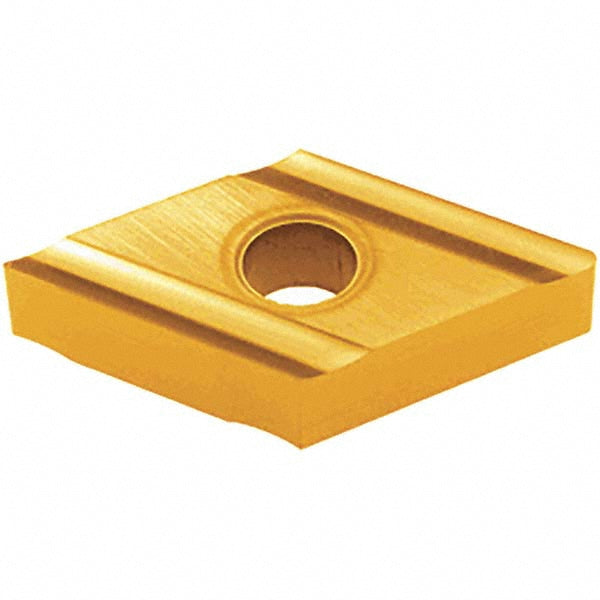

DNGG432-FLP Carbide Insert, Grade TH10 - Tungaloy 6803216

MFR# 6803216ISO/ANSI# DNGG 432 L-PSeries DNGGL-P

$23.97List $30.20 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeTH10
MaterialCarbide

Description

The Tungaloy 6803216 is a DNGG432-FLP carbide indexable insert, grade TH10. Suited for cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chip breakerP
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle55degree
Industry standard numberDNGG 432 L-P
Inscribed circle in1/2
Insert handLeft Hand
Insert holding methodClamp; Pin
Insert length1.2200
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNGG
Insert thickness in3/16
Iso codeDNGG432-FLP
Length range0.7000 - 10.0000
Manufacturers catalog number6803216
Manufacturer gradeTH10
Material gradeP10; M10; K10; N10
Maximum depth of cut0.1575
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle-30
Relief angle0
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
