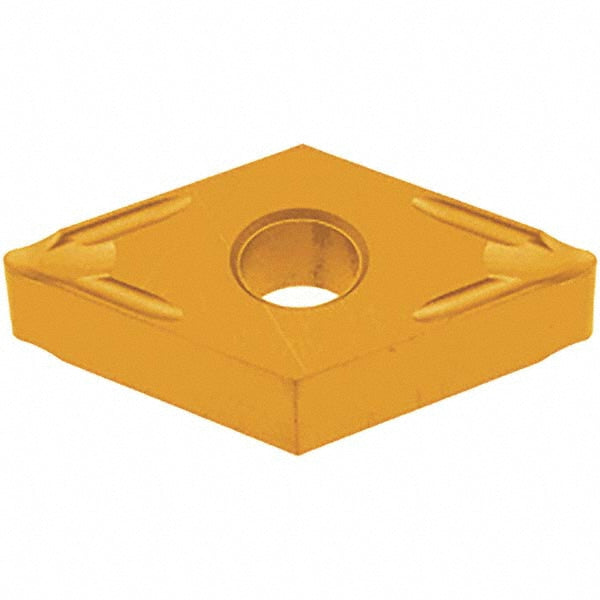

DNMG 432 SS Carbide Insert, Grade GH330, TiCNO - Tungaloy 6803410

Tungaloy

DNMG 432 SS Carbide Insert, Grade GH330, TiCNO - Tungaloy 6803410

MFR# 6803410ISO/ANSI# DNMG 432 SSSeries DNMG-SS

$20.97List $26.90 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeGH330
MaterialCarbide
CoatingTiCNO

Description

The Tungaloy 6803410 is a DNMG 432 SS carbide indexable insert, grade GH330, TiCNO coated. Suited for steel, stainless steel, cast iron.

Specifications

Chip breakerSS
Clearance codeN
Coating finishTiCNO
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle55degree
Industry standard numberDNMG 432 SS
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2200
Insert materialCarbide
Insert shapeDiamond 55
Insert size code432
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG 432 SS
Length range0.7000 - 10.0000
Manufacturers catalog number6803410
Manufacturer gradeGH330
Material gradeP15; P30; M15; M30; K05; K30
Maximum depth of cut0.1181
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
