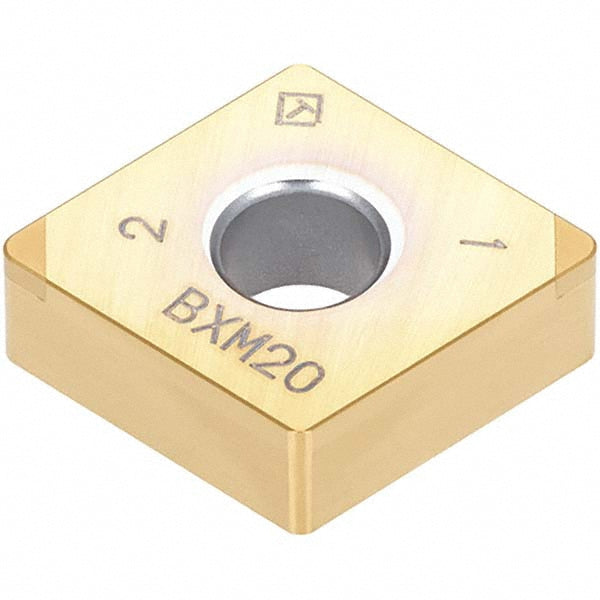

CNGA 432-M2 Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BXM20, TiCN - Tungaloy 6804375

Tungaloy

CNGA 432-M2 Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BXM20, TiCN - Tungaloy 6804375

MFR# 6804375ISO/ANSI# 2QP-CNGA 432Series 2QP-CNM/GA

$74.25List $84.90 Save 12%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeBXM20
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
CoatingTiCN

Description

The Tungaloy 6804375 is a CNGA 432-M2 polycrystalline cubic boron nitride (pcbn) indexable insert, grade BXM20, TiCN coated. Suited for hard material.

Specifications

Chip breakerFlat Top
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard number2QP-CNGA 432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond 80
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA 432-M2
Length range0.5000 - 0.6000
Manufacturers catalog number6804375
Manufacturer gradeBXM20
Material gradeH20
Maximum depth of cut0.0197
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNegative
Rake angle0
Relief angle0
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0870
Tolerance codeG
Width in1/2in
Wiper edgeNo
