Tungaloy

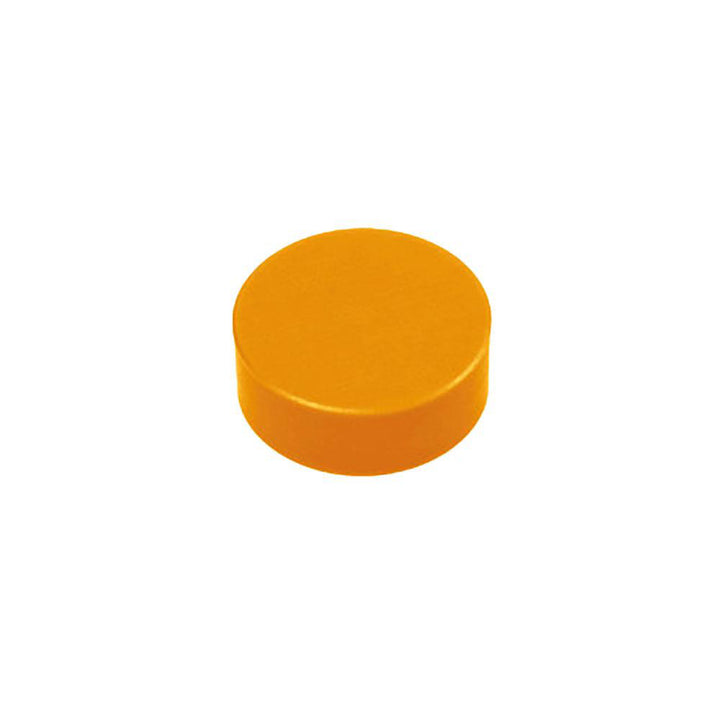

RNGN43 Ceramic Insert, Grade LX11, TiN - Tungaloy 6805896
MFR# 6805896ISO/ANSI# RNGN 430Series RNGN
$20.86List $26.75
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeRound
GradeLX11
MaterialCeramic
CoatingTiN
Description
The Tungaloy 6805896 is a RNGN43 ceramic indexable insert, grade LX11, TiN coated. Suited for hard material.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/4
Cutting edge styleHoned
Full radiusYes
Included angle360degree
Industry standard numberRNGN 430
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp
Insert length in1/2
Insert materialCeramic
Insert shapeRound
Insert size code430
Insert styleRNGN
Insert thickness in3/16
Iso codeRNGN43
Length range0.5000 - 0.6000
Manufacturers catalog number6805896
Manufacturer gradeLX11
Material gradeAlumina TiC
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialHard Material
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeG
Width in1/2in
Wiper edgeNo
