Tungaloy

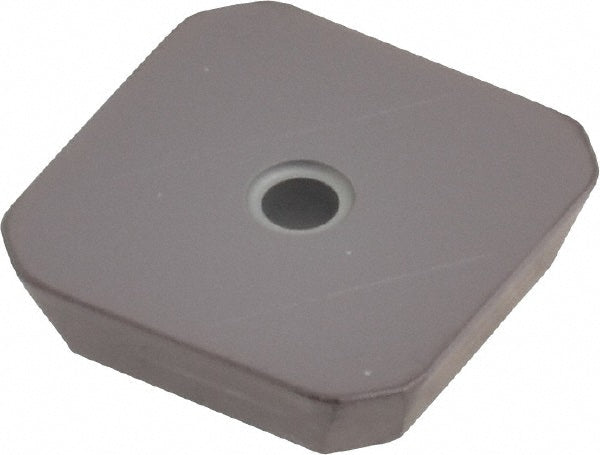

SEKN42AFTN AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6806342
MFR# 6806342ISO/ANSI# SEKN42AFTN AH120Cat# SEKN42AFTNSeries SEKN
$17.86List $22.50
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeAH120
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6806342 is a SEKN42AFTN AH120 solid carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.
Specifications
Ansi codeSEKN42AFTN AH120
Chip breakerFlat Top
Coating finishTiAlN
Coating processPVD
Cutter series compatibilityEPO07; TPO07; HPO07-M
Cutting edge effective length0.5000
Cutting edge styleT-Land
Included angle degree90
Inscribed circle in1/2
Inscribed circle range0.5000 to 0.6000
Insert handNeutral
Insert holding methodClamp
Insert materialSolid Carbide
Insert shapeSquare
Insert size4
Insert size code42
Insert styleSEKN
Iso codeSEKN42AFTN AH120
Length in1/2
Length range0.5000 to 0.6000
Manufacturers catalog numberSEKN42AFTN
Manufacturer gradeAH120
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP15; M15; K15; S10
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakePositive
Relief angle20
Single or double sided insertSingle
StandardsANSI
Thickness in1/8
Thickness range0.1250 to 0.1500
Width in1/2
