Tungaloy

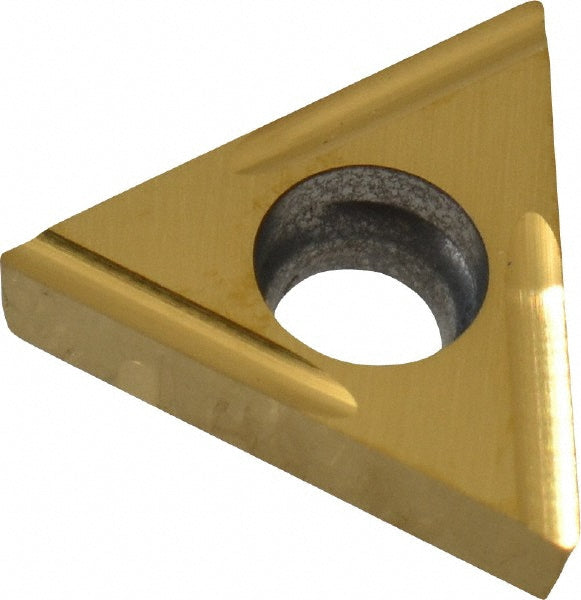

TCGT110202FRJ10 Carbide Insert, Grade J740, TiN - Tungaloy 6807665
MFR# 6807665ISO/ANSI# TCGT 21.50.5 FR-J10Series TCGTR-J10
$16.49List $21.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeJ740
MaterialCarbide
CoatingTiN
Description
The Tungaloy 6807665 is a TCGT110202FRJ10 carbide indexable insert, grade J740, TiN coated. Suited for steel, stainless steel.
Specifications
Chip breakerJ10
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/128
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1100
Included angle60degree
Industry standard numberTCGT 21.50.5 FR-J10
Inscribed circle in1/4
Insert handRight Hand
Insert holding methodScrew
Insert length0.4330
Insert materialCarbide
Insert shapeTriangle
Insert size code21.50.5
Insert styleTCGT
Insert thickness in3/32
Iso codeTCGT110202FRJ10
Length range0.4000 - 0.5000
Manufacturers catalog number6807665
Manufacturer gradeJ740
Material gradeUltra Fine Grain
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle30
Relief angle7
StandardsANSI; ISO
Tolerance codeG
Width0.4330in
Wiper edgeNo
