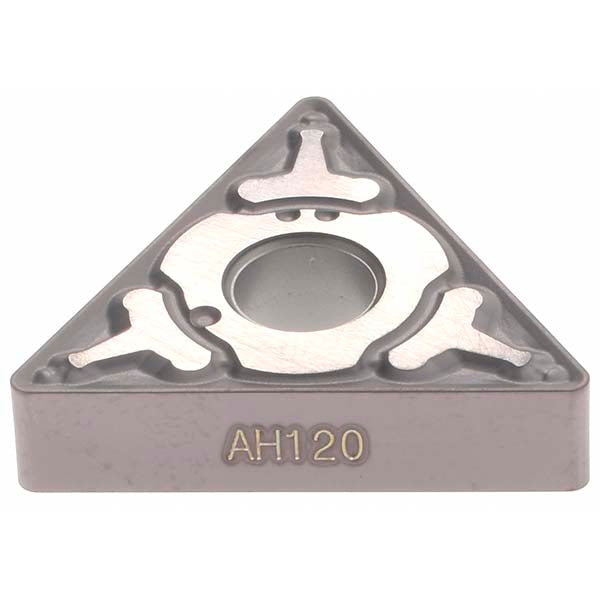

TNMG 432 TM Carbide Insert, Grade AH120, TiAlN - Tungaloy 6808633

Tungaloy

TNMG 432 TM Carbide Insert, Grade AH120, TiAlN - Tungaloy 6808633

MFR# 6808633ISO/ANSI# TNMG220408Series TNMG-TM

$17.39List $22.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeT - Triangle
GradeAH120
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6808633 is a TNMG 432 TM carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi insert codeTNMG432
Ansi size code432
Chip breakerTM
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S)
Hole diameter0.2030
Included angle60
Industry standard numberTNMG 432 TM
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8660
Insert materialCarbide
Insert shapeT - Triangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 432 TM
Iso insert codeTNMG220408
Iso size code220408
Length range0.7000 - 10.0000
Manufacturers catalog number6808633
Manufacturer gradeAH120
Material gradeP15; P25; M15; M25; K15; K30; S10; S25
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle-6
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width0.8660
Wiper edgeNo
