Tungaloy

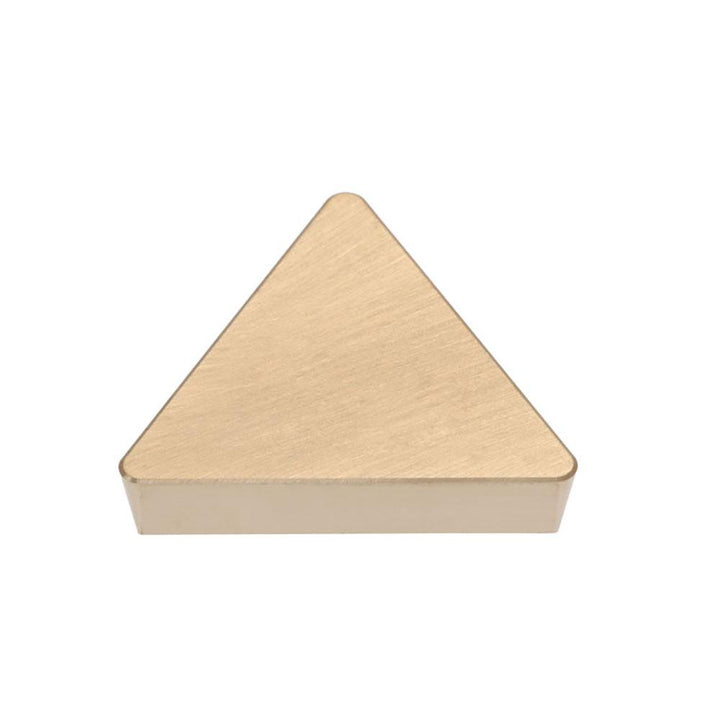

TPGN221 Ceramic Insert, Grade LX11, TiN - Tungaloy 6808820
MFR# 6808820ISO/ANSI# TPGN 221Series TPM/GN
$17.82List $22.85
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeTriangle
GradeLX11
MaterialCeramic
CoatingTiN
Description
The Tungaloy 6808820 is a TPGN221 ceramic indexable insert, grade LX11, TiN coated. Suited for hard material.
Specifications
Chip breakerFlat Top
Clearance codeP
Coating finishTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Included angle60degree
Industry standard numberTPGN 221
Inscribed circle in1/4
Insert handNeutral
Insert holding methodClamp
Insert length0.4330
Insert materialCeramic
Insert shapeTriangle
Insert size code221
Insert styleTPGN
Insert thickness in1/8
Iso codeTPGN221
Length range0.4000 - 0.5000
Manufacturers catalog number6808820
Manufacturer gradeLX11
Material gradeAlumina TiC
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialHard Material
RakePositive
Rake angle0
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width0.4330in
Wiper edgeNo
