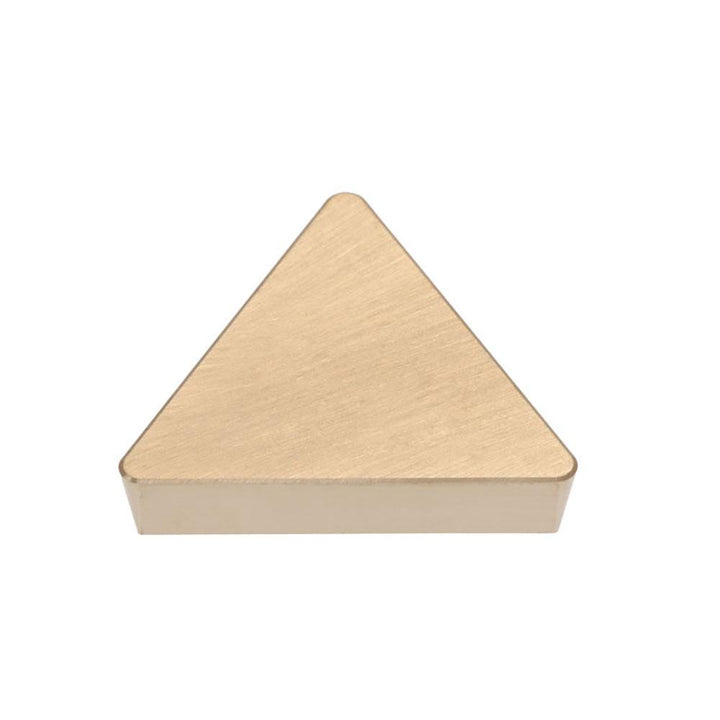

TPG 322 Carbide Insert, Grade TH10 - Tungaloy 6808852

Tungaloy

TPG 322 Carbide Insert, Grade TH10 - Tungaloy 6808852

MFR# 6808852ISO/ANSI# TPGN 322Series TPM/GN

$22.33List $28.15 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTriangle
GradeTH10
MaterialCarbide

Description

The Tungaloy 6808852 is a TPG 322 carbide indexable insert, grade TH10. Suited for cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Chip breakerFlat Top
Clearance codeP
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Included angle60degree
Industry standard numberTPGN 322
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6500
Insert materialCarbide
Insert shapeTriangle
Insert size code322
Insert styleTPGN
Insert thickness in1/8
Iso codeTPG 322
Length range0.6500 - 0.7000
Manufacturers catalog number6808852
Manufacturer gradeTH10
Material gradeP10; M10; K10; N10
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialCast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle0
Relief angle11
StandardsANSI; ISO
Tolerance codeG
Width0.6500in
Wiper edgeNo
