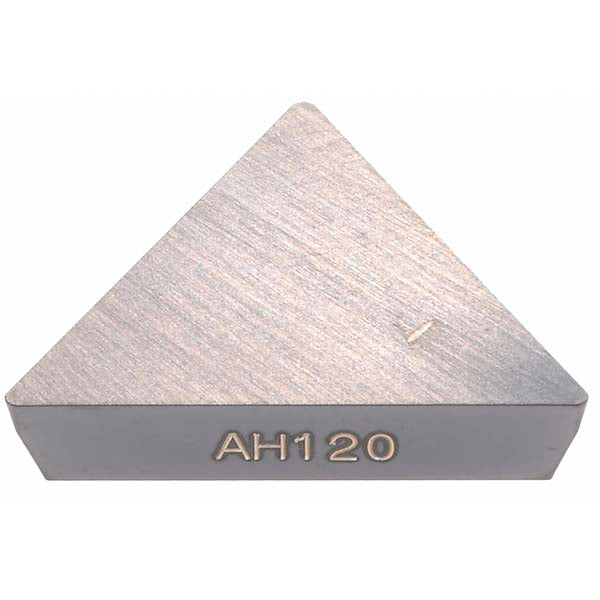

TPU 321 Carbide Insert, Grade AH120, TiAlN - Tungaloy 6809059

Tungaloy

TPU 321 Carbide Insert, Grade AH120, TiAlN - Tungaloy 6809059

MFR# 6809059ISO/ANSI# TPMN160304Series TPM/GN

$16.70List $21.05 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeAH120
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6809059 is a TPU 321 carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Ansi insert codeTPMN321
Ansi size code321
Chip breakerFlat Top
Chip breaker operationFinishing
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S)
Included angle60
Industry standard numberTPMN 321
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length0.6500
Insert materialCarbide
Insert shapeT - Triangle
Insert size code321
Insert styleTPMN
Insert thickness in1/8
Iso codeTPU 321
Iso insert codeTPMN160304
Iso size code160304
Length range0.6500 - 0.7000
Manufacturers catalog number6809059
Manufacturer gradeAH120
Material gradeP15; P25; M15; M25; K15; K30; S10; S25
Maximum depth of cut0.0787
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakePositive
Rake angle0
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.6500
Wiper edgeNo
