Tungaloy

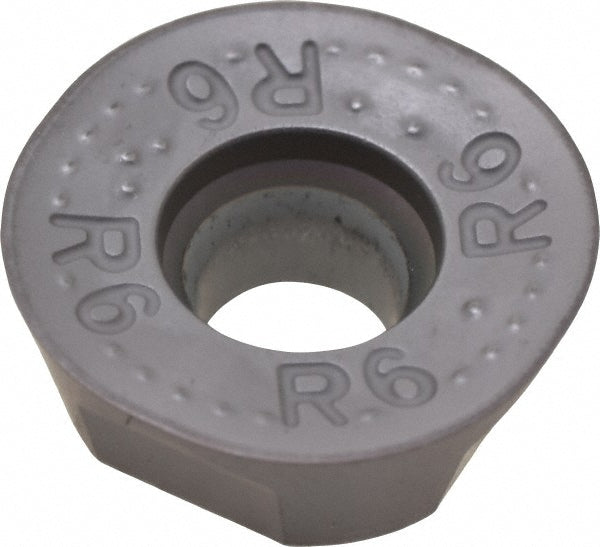

RDMT1204ZDPN-MJ AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6810230
MFR# 6810230ISO/ANSI# RDMT1204ZDPN-MJ AH120Cat# RDMT1204ZDPN-MJSeries RDMT
$18.17List $23.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRound
GradeAH120
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6810230 is a RDMT1204ZDPN-MJ AH120 solid carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.
Specifications
Ansi codeRDMT1204ZDPN-MJ AH120
Chip breakerMJ
Coating finishTiAlN
Coating processPVD
Convex radius0.2520
Corner radius0.2362
Cutter series compatibilityERD12
Cutting edge styleHoned
Included angle degree360
Inscribed circle0.5039
Inscribed circle range0.5000 to 0.6000
Insert handNeutral
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRound
Insert size12
Insert size code1204
Insert styleRDMT
Iso codeRDMT1204ZDPN-MJ AH120
Length0.5040
Length range0.5000 to 0.6000
Manufacturers catalog numberRDMT1204ZDPN-MJ
Manufacturer gradeAH120
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP15; M15; K15; S10
Maximum depth of cut0.2360
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakePositive
Relief angle15
Single or double sided insertSingle
StandardsISO
Thickness in3/16
Thickness range0.1850 to 0.2000
Width0.5040
