Tungaloy

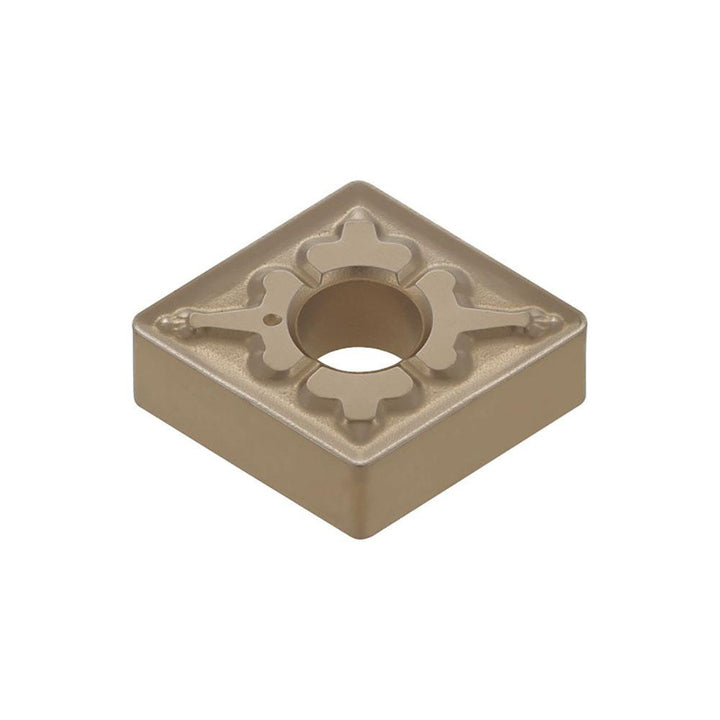

CNMG 643 TM Carbide Insert, Grade AH120, TiAlN - Tungaloy 6811660
MFR# 6811660ISO/ANSI# CNMG 643 TMSeries CNMG-TM
$31.93List $40.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeAH120
MaterialCarbide
CoatingTiAlN
Description
The Tungaloy 6811660 is a CNMG 643 TM carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.
Specifications
Chip breakerTM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Cutting edge styleSharp
Full radiusNo
Hole diameter0.3120
Included angle80
Industry standard numberCNMG 643 TM
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7600
Insert materialCarbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 643 TM
Length range0.7000 - 10.0000
Manufacturers catalog number6811660
Manufacturer gradeAH120
Material gradeP15; P25; M15; M25; K15; K30; S10; S25
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle-6
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
