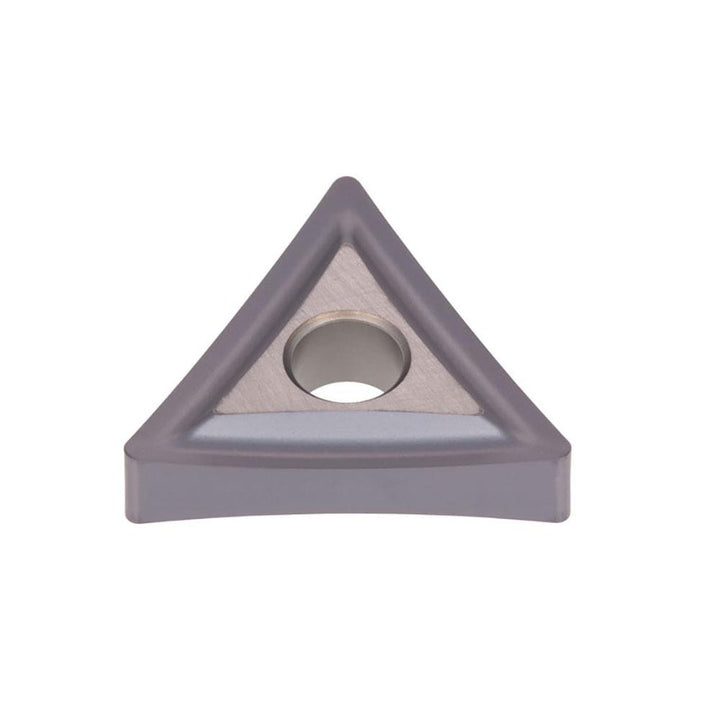

TNMG431-28 Carbide Insert, Grade AH120, TiAlN - Tungaloy 6812067

Tungaloy

TNMG431-28 Carbide Insert, Grade AH120, TiAlN - Tungaloy 6812067

MFR# 6812067ISO/ANSI# TNMG 431-28Series TNMG-28

$17.70List $22.30 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
GradeAH120
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6812067 is a TNMG431-28 carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Chip breaker28
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle60degree
Industry standard numberTNMG 431-28
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8660
Insert materialCarbide
Insert shapeTriangle
Insert size code431
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG431-28
Length range0.7000 - 10.0000
Manufacturers catalog number6812067
Manufacturer gradeAH120
Material gradeP15; P25; M15; M25; K15; K30; S10; S25
Maximum depth of cut0.1181
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.8660in
Wiper edgeNo
