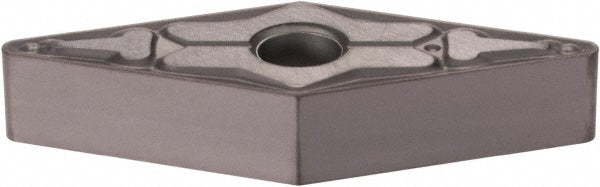

VNMG160408TM Carbide Insert, Grade AH120, TiAlN - Tungaloy 6812146

Tungaloy

VNMG160408TM Carbide Insert, Grade AH120, TiAlN - Tungaloy 6812146

MFR# 6812146ISO/ANSI# VNMG 332 TMSeries VNMG-TM

$21.10List $26.60 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond 35
GradeAH120
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6812146 is a VNMG160408TM carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material.

Specifications

Chip breakerTM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleSharp
Full radiusNo
Hole diameter0.1500
Included angle35degree
Industry standard numberVNMG 332 TM
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3080
Insert materialCarbide
Insert shapeDiamond 35
Insert size code332
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160408TM
Length range0.7000 - 10.0000
Manufacturers catalog number6812146
Manufacturer gradeAH120
Material gradeP15; P25; M15; M25; K15; K30; S10; S25
Maximum depth of cut0.1969
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle-6
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8in
Wiper edgeNo
