Tungaloy

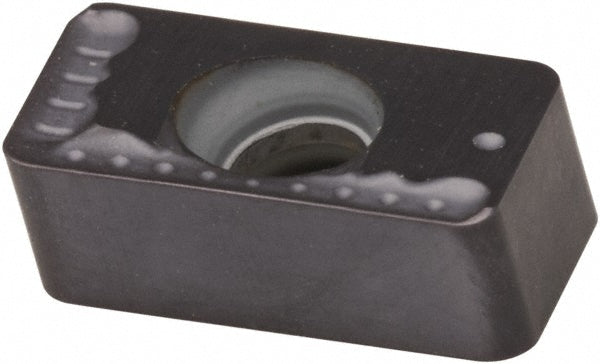

XXMU10H308PR-MJ AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6815359
MFR# 6815359ISO/ANSI# XXMU10H308PR-MJ AH120Cat# XXMU10H308PR-MJSeries XXMU
$14.19List $18.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeAH120
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6815359 is a XXMU10H308PR-MJ AH120 solid carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.
Specifications
Ansi codeXXMU10H308PR-MJ AH120
Chip breakerMJ
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityEVX
Cutting edge styleCentral; Peripheral
Included angle degree90
Inscribed circle0.2680
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size10
Insert size code10H308
Insert styleXXMU
Iso codeXXMU10H308PR-MJ AH120
Length0.4170
Length range0.4000 to 0.4500
Manufacturers catalog numberXXMU10H308PR-MJ
Manufacturer gradeAH120
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP15; M15; K15; S10
Maximum depth of cut0.3540
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsISO
Thickness0.1380
Thickness range0.1250 to 0.1500
Width0.2680
