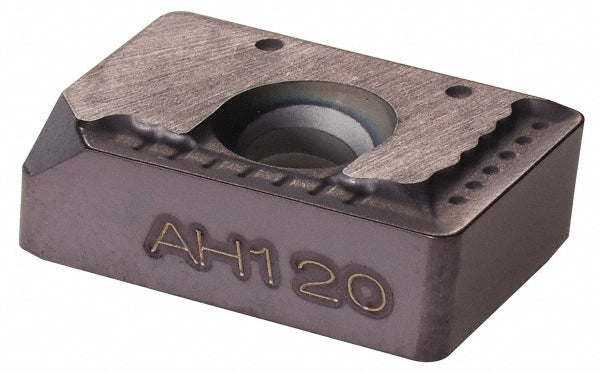

XXMU16X508PR-MJ AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6815361
MFR# 6815361ISO/ANSI# XXMU16X508PR-MJ AH120Cat# XXMU16X508PR-MJSeries XXMU
$21.48List $27.55
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeRectangle
GradeAH120
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6815361 is a XXMU16X508PR-MJ AH120 solid carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.
Specifications
Ansi codeXXMU16X508PR-MJ AH120
Chip breakerMJ
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityEVX
Cutting edge styleCentral; Peripheral
Included angle degree90
Inscribed circle0.4370
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeRectangle
Insert size16
Insert size code16X508
Insert styleXXMU
Iso codeXXMU16X508PR-MJ AH120
Length0.6610
Length range0.6500 to 0.7000
Manufacturers catalog numberXXMU16X508PR-MJ
Manufacturer gradeAH120
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP15; M15; K15; S10
Maximum depth of cut0.5910
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsISO
Thickness0.1970
Thickness range0.1850 to 0.2000
Width0.4370
