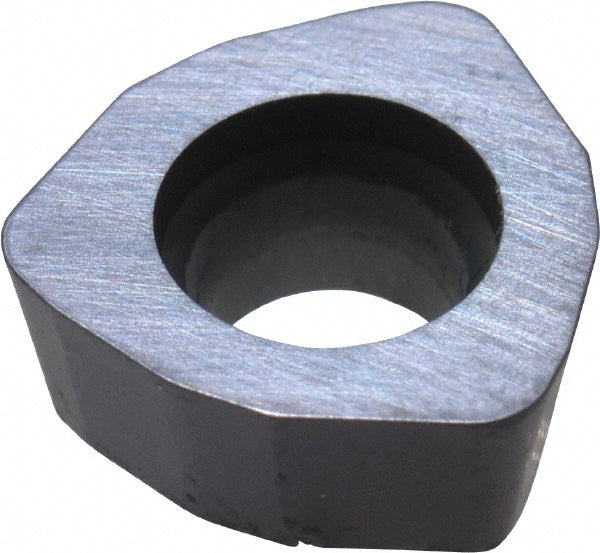

WPMW06X415ZPR AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6817328

Tungaloy

WPMW06X415ZPR AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6817328

MFR# 6817328ISO/ANSI# WPMW06X415ZPR AH120Cat# WPMW06X415ZPRSeries WPMW

$16.66List $21.00 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeTrigon
GradeAH120
MaterialSolid Carbide
CoatingTiAlN

Description

The Tungaloy 6817328 is a WPMW06X415ZPR AH120 solid carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.

Specifications

Ansi codeWPMW06X415ZPR AH120
Chip breakerFlat Top
Coating finishTiAlN
Coating processPVD
Corner radius0.0590
Cutter series compatibilityEXP05/06/08/09; TXP05/06/08/09
Cutting edge styleHoned
Hole diameter0.1299
Included angle degree80
Inscribed circle in3/8
Inscribed circle range0.3500 to 0.4000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size06
Insert size code06X415
Insert styleWPMW
Iso codeWPMW06X415ZPR AH120
Length0.4720
Length range0.4500 to 0.5000
Manufacturers catalog numberWPMW06X415ZPR
Manufacturer gradeAH120
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP15; M15; K15; S10
Maximum depth of cut0.0590
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsISO
Thickness0.1650
Thickness range0.1500 to 0.1750
Width0.4720
