Tungaloy

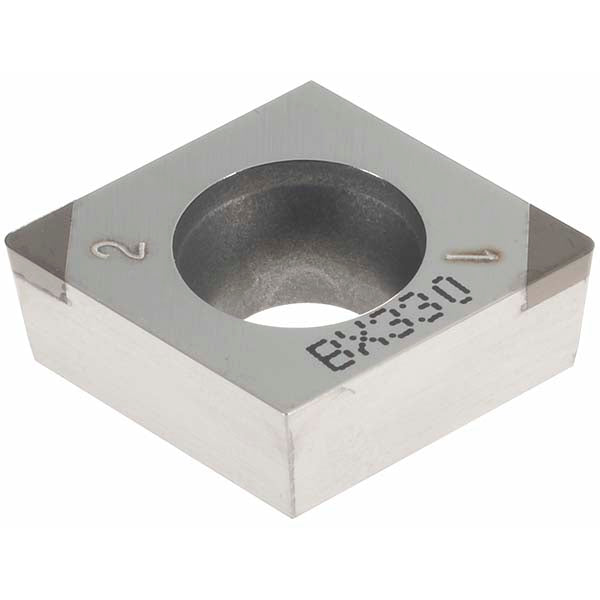

CCMW32.51 PCBN Insert, Grade BX330 - Tungaloy 6817913
MFR# 6817913ISO/ANSI# CCMW09T304Series 2QP-CCM/GW
$77.66List $87.25
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
GradeBX330
MaterialPCBN
Description
The Tungaloy 6817913 is a CCMW32.51 pcbn indexable insert, grade BX330. Suited for hard material.
Specifications
Ansi insert codeCCMW32.51
Ansi size code32.51
Chip breakerFlat Top
Chip breaker operationFinishing
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsHardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1730
Included angle80
Industry standard number2QP-CCMW 32.51
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3820
Insert materialPCBN
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.51
Insert styleCCMW
Insert thickness in5/32
Iso codeCCMW32.51
Iso insert codeCCMW09T304
Iso size code09T304
Length range0.3000 - 0.4000
Manufacturers catalog number6817913
Manufacturer gradeBX330
Material gradeFine Grain
Maximum depth of cut0.0197
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0910
Tolerance codeM
Width in3/8
Wiper edgeNo
