Tungaloy

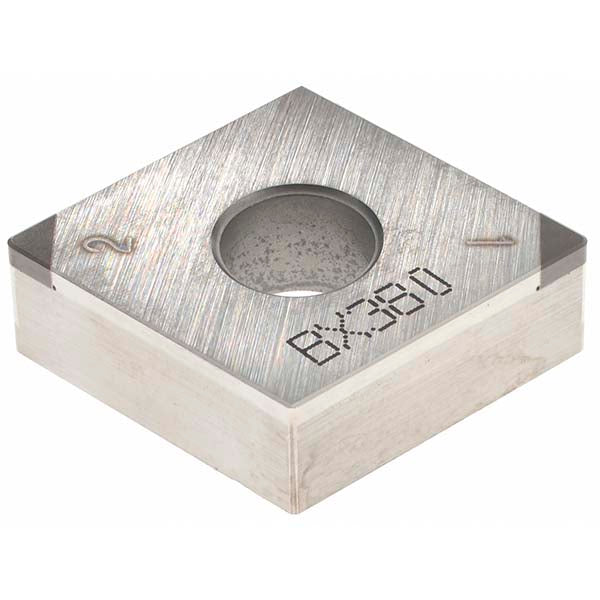

C - Diamond (Rhombic) 80-Deg 1/2" IC PCBN Insert, Grade BX380 - Tungaloy 6817919
MFR# 6817919ISO/ANSI# CNGA120404Series 2QP-CNM/GA
$69.87List $78.50
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeBX380
MaterialPCBN
Description
The Tungaloy 6817919 is a pcbn indexable insert, grade BX380. Suited for hard material.
Specifications
Ansi insert codeCNGA431
Ansi size code431
Chip breakerFlat Top
Chip breaker operationFinishing
Clearance codeN
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle80
Industry standard number2QP-CNGA 431
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialPCBN
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCNGA
Insert thickness in3/16
Iso insert codeCNGA120404
Iso size code120404
Length range0.5000 - 0.6000
Manufacturers catalog number6817919
Manufacturer gradeBX380
Material gradeCoarse Grain
Maximum depth of cut0.0197
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0910
Tolerance codeG
Width in1/2
Wiper edgeNo
