Tungaloy

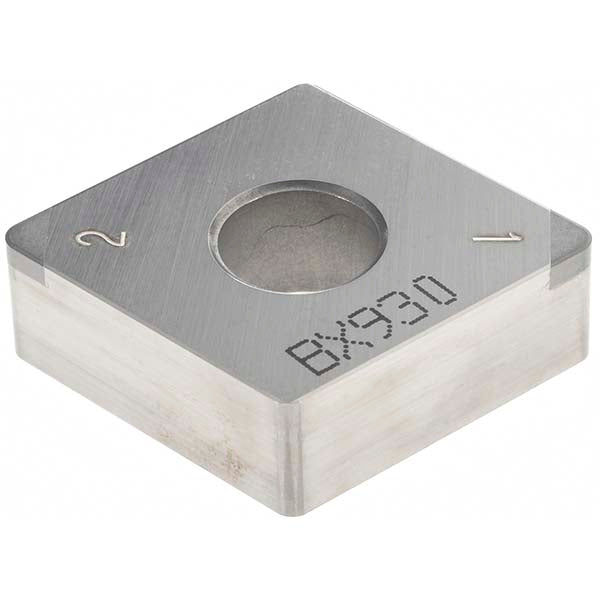

CNGA 432 PCBN Insert, Grade BX930 - Tungaloy 6817929
MFR# 6817929ISO/ANSI# CNGA120408Series 2QP-CNM/GA
$68.66List $78.50
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeBX930
MaterialPCBN
Description
The Tungaloy 6817929 is a CNGA 432 pcbn indexable insert, grade BX930. Suited for cast iron.
Specifications
Ansi insert codeCNGA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFinishing
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsCast Iron (K) - High Wear-Resistance; Hardened Materials (H) - High Wear-Resistance
Hole diameter0.2030
Included angle80
Industry standard number2QP-CNGA 432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialPCBN
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA 432
Iso insert codeCNGA120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number6817929
Manufacturer gradeBX930
Material gradeC3; C4
Maximum depth of cut0.0197
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0870
Tolerance codeG
Width in1/2
Wiper edgeNo
