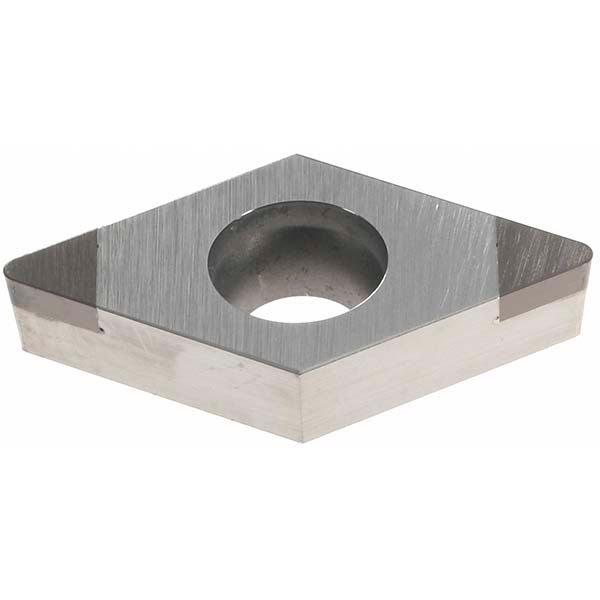

DCMW070204 PCBN Insert, Grade BX330 - Tungaloy 6817943
MFR# 6817943ISO/ANSI# DCMW070204Series 2QP-DCM/GW
$77.66List $87.25
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeD - Diamond (Rhombic) 55-Deg
GradeBX330
MaterialPCBN
Description
The Tungaloy 6817943 is a DCMW070204 pcbn indexable insert, grade BX330. Suited for hard material.
Specifications
Ansi insert codeDCMW21.51
Ansi size code21.51
Chip breakerFlat Top
Chip breaker operationFinishing
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsHardened Materials (H) - High Wear Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.1100
Included angle55
Industry standard number2QP-DCMW 21.51
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6140
Insert materialPCBN
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code21.51
Insert styleDCMW
Insert thickness in3/32
Iso codeDCMW070204
Iso insert codeDCMW070204
Iso size code070204
Length range0.6000 - 0.6500
Manufacturers catalog number6817943
Manufacturer gradeBX330
Material gradeFine Grain
Maximum depth of cut0.0197
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Rake angle0
Relief angle7
Side clearancePositive
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0980
Tolerance codeM
Width in1/4
Wiper edgeNo
