Tungaloy

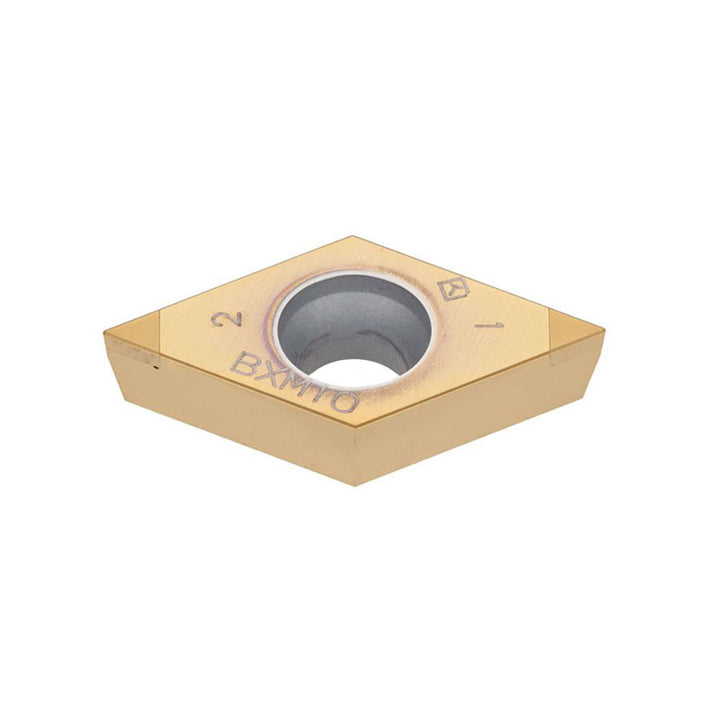

DCMW32.51 Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BX330 - Tungaloy 6817946
MFR# 6817946ISO/ANSI# 2QP-DCMW 32.51Series 2QP-DCM/GW
$77.66List $87.25
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond 55
GradeBX330
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
Description
The Tungaloy 6817946 is a DCMW32.51 polycrystalline cubic boron nitride (pcbn) indexable insert, grade BX330. Suited for hard material.
Specifications
Chip breakerFlat Top
Clearance codeC
Coating processUncoated
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle55degree
Industry standard number2QP-DCMW 32.51
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9140
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond 55
Insert size code32.51
Insert styleDCMW
Insert thickness in5/32
Iso codeDCMW32.51
Length range0.7000 - 10.0000
Manufacturers catalog number6817946
Manufacturer gradeBX330
Material gradeFine Grain
Maximum depth of cut0.0197
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakePositive
Rake angle0
Relief angle7
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0980
Tolerance codeM
Width in3/8in
Wiper edgeNo
