Tungaloy

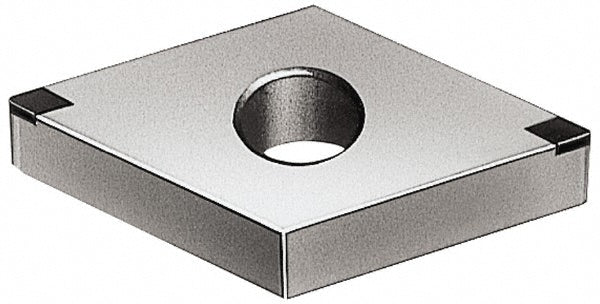

Diamond 55 1/2" IC Polycrystalline Cubic Boron Nitride (PCBN) Insert, Grade BX310 - Tungaloy 6817958
MFR# 6817958ISO/ANSI# 2QP-DNGA 432Series 2QP-DNGA
$69.87List $78.50
Save 10%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 55
GradeBX310
MaterialPolycrystalline Cubic Boron Nitride (PCBN)
Description
The Tungaloy 6817958 is a polycrystalline cubic boron nitride (pcbn) indexable insert, grade BX310. Suited for hard material.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating processUncoated
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2030
Included angle55degree
Industry standard number2QP-DNGA 432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2200
Insert materialPolycrystalline Cubic Boron Nitride (PCBN)
Insert shapeDiamond 55
Insert size code432
Insert styleDNGA
Insert thickness in3/16
Length range0.7000 - 10.0000
Manufacturers catalog number6817958
Manufacturer gradeBX310
Material gradeMedium Grain
Maximum depth of cut0.0197
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialHard Material
RakeNegative
Rake angle0
Relief angle0
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.0830
Tolerance codeG
Width in1/2in
Wiper edgeNo
