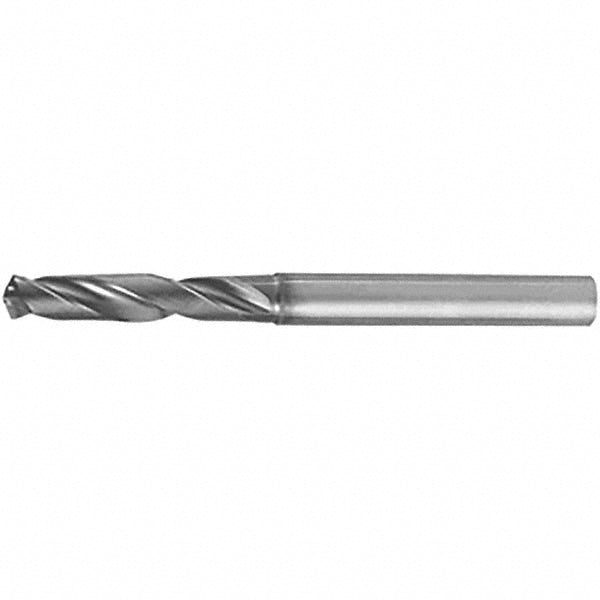

9.10mm Solid Carbide Drill Bit, TiAlN, 140° point - Tungaloy 6818856

Tungaloy

9.10mm Solid Carbide Drill Bit, TiAlN, 140° point - Tungaloy 6818856

MFR# 6818856Series GigaJetDrill

$318.75List $364.45 Save 12%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes2
CoatingTiAlN

Description

The Tungaloy 6818856 is a 9.10mm Solid Carbide drill bit with a TiAlN finish, 140° point. Suited for alloy steel, aluminum alloy, heat-resistant alloy, titanium alloy. Series GigaJetDrill.

Specifications

Coating finishTiAlN
Coolant throughYes
Cutting directionRight Hand
Drill bit diameter toleranceh8
Drill bit finish coatingTiAlN
Drill bit materialSolid Carbide
Drill bit size (mm)9.10
Drill bit size range (mm)9.00 - 10.00
Drill point angle degrees140
Drill point length (mm)1.66
Flute by diameter ratio5xD
Flute length (mm)76.00
Flute typeSpiral
Material gradeP20-P35; M20-M35; K15-K30
Maximum drilling depth (mm)76.00
Number of flutes2
Overall length (mm)136.00
Point typeStandard
Primary workpiece materialAlloy Steel; Aluminum Alloy; Heat-Resistant Alloy; Titanium Alloy
Shank diameter (mm)10.00
Shank length (mm)56.00
Shank typeStraight-Cylindrical
Specification designationISO
Spiral typeRegular
Tool applicationHolemaking
