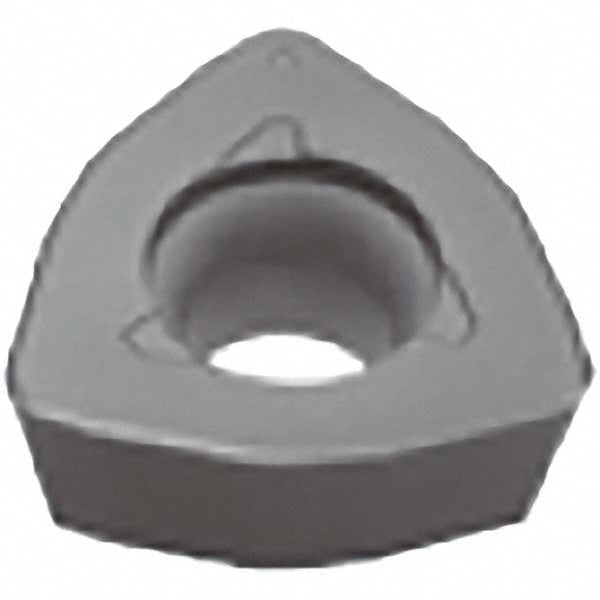

WPMT090725ZSR-MH AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6821900

Tungaloy

WPMT090725ZSR-MH AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6821900

MFR# 6821900ISO/ANSI# WPMT090725ZSR-MH AH120Cat# WPMT090725ZSR-MHSeries WPMT

$21.18List $26.70 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
ShapeTrigon
GradeAH120
MaterialSolid Carbide
CoatingTiAlN

Description

The Tungaloy 6821900 is a WPMT090725ZSR-MH AH120 solid carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.

Specifications

Ansi codeWPMT090725ZSR-MH AH120
Chip breakerMH
Coating finishTiAlN
Coating processPVD
Corner radius0.0980
Cutter series compatibilityEXP05/06/08/09; TXP05/06/08/09
Cutting edge styleChamfered; Honed
Included angle degree80
Inscribed circle0.5910
Inscribed circle range0.5000 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size09
Insert size code090725
Insert styleWPMT
Iso codeWPMT090725ZSR-MH AH120
Length0.7080
Length range0.7000 to 0.9000
Manufacturers catalog numberWPMT090725ZSR-MH
Manufacturer gradeAH120
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP15; M15; K15; S10
Maximum depth of cut0.1180
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsISO
Thickness0.2760
Thickness range0.2500 to 0.3500
Width0.7080
