Tungaloy

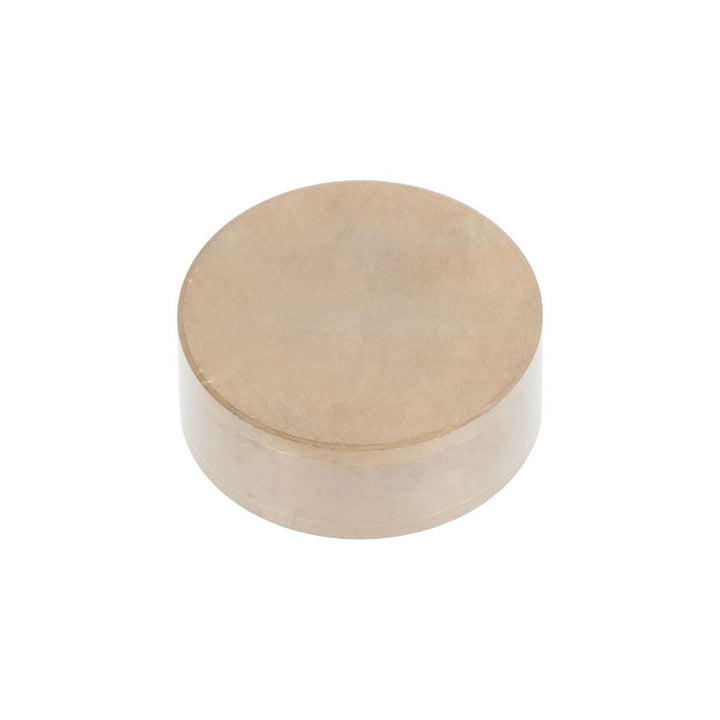

RNGN 32 PCBN Insert, Grade BXC90, TiN - Tungaloy 6822066
MFR# 6822066ISO/ANSI# RNGN090300Series S-RNGN
$186.12List $212.80
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeR - Round
GradeBXC90
MaterialPCBN
CoatingTiN
Description
The Tungaloy 6822066 is a RNGN 32 pcbn indexable insert, grade BXC90, TiN coated. Suited for cast iron, hard material.
Specifications
Ansi insert codeRNGN32
Ansi size code32
Chip breakerFlat Top
Chip breaker operationFinishing
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in3/16
Cutting edge styleHoned
Full radiusYes
Grade characteristicsCast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear-Resistance
Included angle360
Industry standard numberS-RNGN 32
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp
Insert length in3/8
Insert materialPCBN
Insert shapeR - Round
Insert size code32
Insert styleRNGN
Insert thickness in1/8
Iso codeRNGN 32
Iso insert codeRNGN090300
Iso size code090300
Length range0.3000 - 0.4000
Manufacturers catalog number6822066
Manufacturer gradeBXC90
Material gradeK15; K30; H10
Maximum depth of cut0.1181
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialCast Iron; Hard Material
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
Single or multi tippedMulti Tipped
StandardsANSI; ISO
Tip length0.1880
Tolerance codeG
Width in3/8
Wiper edgeNo
