Tungaloy

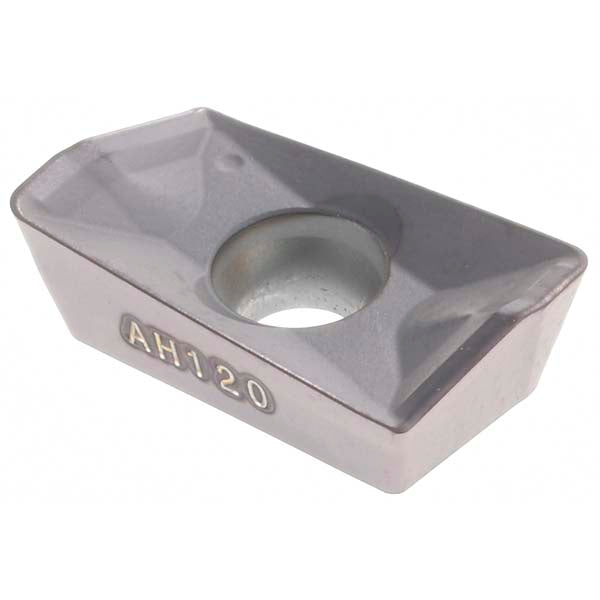

ASMT11T308PDPR-MJ AH120 Solid Carbide Insert, Grade AH120, TiAlN - Tungaloy 6822078
MFR# 6822078ISO/ANSI# ASMT11T308PDPR-MJ AH120Cat# ASMT11T308PDPR-MJSeries ASMT
$18.32List $23.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeParallelogram
GradeAH120
MaterialSolid Carbide
CoatingTiAlN
Description
The Tungaloy 6822078 is a ASMT11T308PDPR-MJ AH120 solid carbide indexable insert, grade AH120, TiAlN coated. Suited for steel, stainless steel, cast iron, hard material, superalloys & titanium.
Specifications
Ansi codeASMT11T308PDPR-MJ AH120
Chip breakerMJ
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutter series compatibilityEPS11; TLS11; ELS11; HPO11-M; EPO11; TPO11
Cutting edge styleHoned
Included angle degree85
Inscribed circle0.2640
Inscribed circle range0.2500 to 0.3000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeParallelogram
Insert size11
Insert size code11T308
Insert styleASMT
Iso codeASMT11T308PDPR-MJ AH120
Length in31/64
Length range0.4500 to 0.5000
Manufacturers catalog numberASMT11T308PDPR-MJ
Manufacturer gradeAH120
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
Material gradeP15; M15; K15; S10
Maximum depth of cut0.4170
Multi use toolNo
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material; Superalloys & Titanium
RakePositive
Relief angle11.00
Single or double sided insertSingle
StandardsISO
Thickness0.1460
Thickness range0.1250 to 0.1500
Width0.2640
