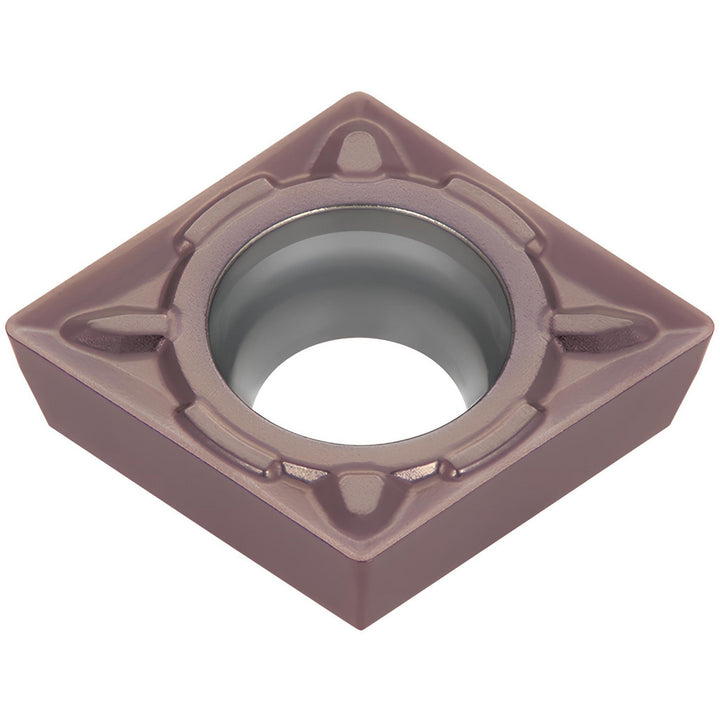

CPMT090304-PM Carbide Insert, Grade AH6225, TiAlN - Tungaloy 6829423

Tungaloy

CPMT090304-PM Carbide Insert, Grade AH6225, TiAlN - Tungaloy 6829423

MFR# 6829423ISO/ANSI# CPMT 321 PMSeries CPMT-PM

$13.49List $17.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAH6225
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6829423 is a CPMT090304-PM carbide indexable insert, grade AH6225, TiAlN coated. Suited for steel, stainless steel.

Specifications

Chip breakerPM
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1730
Included angle80
Industry standard numberCPMT 321 PM
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3820
Insert materialCarbide
Insert shapeDiamond
Insert size code321
Insert styleCPMT
Insert thickness in1/8
Iso codeCPMT090304-PM
Length range0.3000 - 0.4000
Manufacturers catalog number6829423
Manufacturer gradeAH6225
Material gradeP20; P30; M20; M30
Maximum depth of cut0.1181
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel
RakePositive
Rake angle8
Relief angle11
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
