Tungaloy

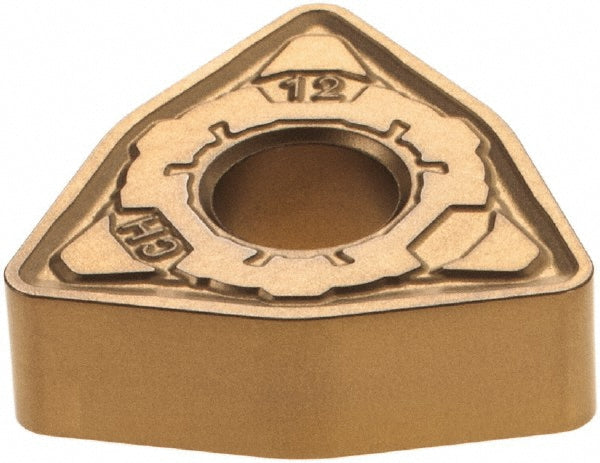

WNMG433CH Carbide Insert, Grade T5115, TiCN - Tungaloy 6850368
MFR# 6850368ISO/ANSI# WNMG 433 CHSeries WNMG-CH
$16.10List $20.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon
GradeT5115
MaterialCarbide
CoatingTiCN
Description
The Tungaloy 6850368 is a WNMG433CH carbide indexable insert, grade T5115, TiCN coated. Suited for cast iron.
Specifications
Chip breakerCH
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberWNMG 433 CH
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6860
Insert materialCarbide
Insert shapeTrigon
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso codeWNMG433CH
Length range0.6500 - 0.7000
Manufacturers catalog number6850368
Manufacturer gradeT5115
Material gradeK10; K20
Maximum depth of cut0.2362
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle-15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.6860in
Wiper edgeNo
