Tungaloy

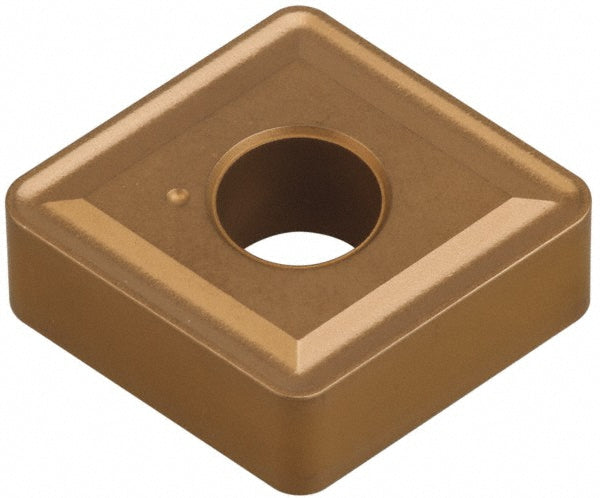

CNMG 542 Carbide Insert, Grade T5125, TiCN - Tungaloy 6852898
MFR# 6852898ISO/ANSI# CNMG 542Series CNMG
$26.08List $33.45
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond 80
GradeT5125
MaterialCarbide
CoatingTiCN
Description
The Tungaloy 6852898 is a CNMG 542 carbide indexable insert, grade T5125, TiCN coated. Suited for cast iron.
Specifications
Chip breakerCommon
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle80degree
Industry standard numberCNMG 542
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6340
Insert materialCarbide
Insert shapeDiamond 80
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 542
Length range0.6000 - 0.6500
Manufacturers catalog number6852898
Manufacturer gradeT5125
Material gradeK15; K30
Maximum depth of cut0.2362
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle-15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in5/8in
Wiper edgeNo
