Tungaloy

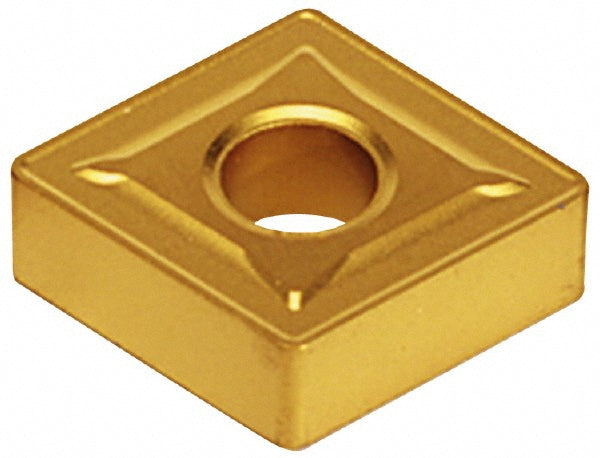

CNMG 432 Carbide Insert, Grade T5115, TiCN - Tungaloy 6852908
MFR# 6852908ISO/ANSI# CNMG 432Series CNMG
$16.10List $20.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeT5115
MaterialCarbide
CoatingTiCN
Description
The Tungaloy 6852908 is a CNMG 432 carbide indexable insert, grade T5115, TiCN coated. Suited for cast iron.
Specifications
Chip breakerCommon
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG 432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 432
Length range0.5000 - 0.6000
Manufacturers catalog number6852908
Manufacturer gradeT5115
Material gradeK10; K20
Maximum depth of cut0.2362
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle-15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
