Tungaloy

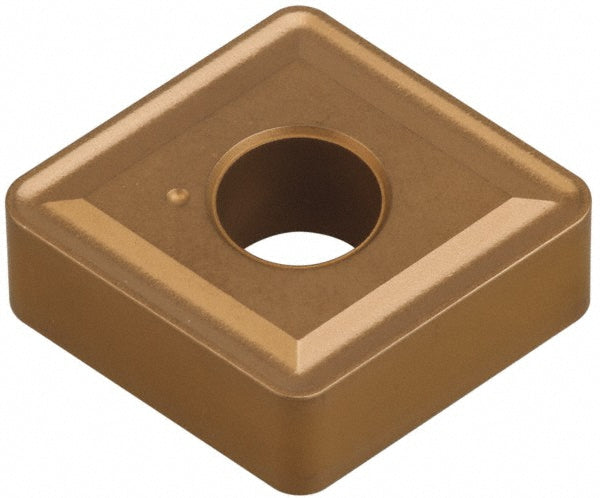

CNMG 434 Carbide Insert, Grade T5105, TiCN - Tungaloy 6852913
MFR# 6852913ISO/ANSI# CNMG 434Series CNMG
$16.10List $20.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond 80
GradeT5105
MaterialCarbide
CoatingTiCN
Description
The Tungaloy 6852913 is a CNMG 434 carbide indexable insert, grade T5105, TiCN coated. Suited for cast iron.
Specifications
Chip breakerCommon
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle80degree
Industry standard numberCNMG 434
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCarbide
Insert shapeDiamond 80
Insert size code434
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 434
Length range0.5000 - 0.6000
Manufacturers catalog number6852913
Manufacturer gradeT5105
Material gradeK05; K15
Maximum depth of cut0.2362
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron
RakeNegative
Rake angle-15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2in
Wiper edgeNo
