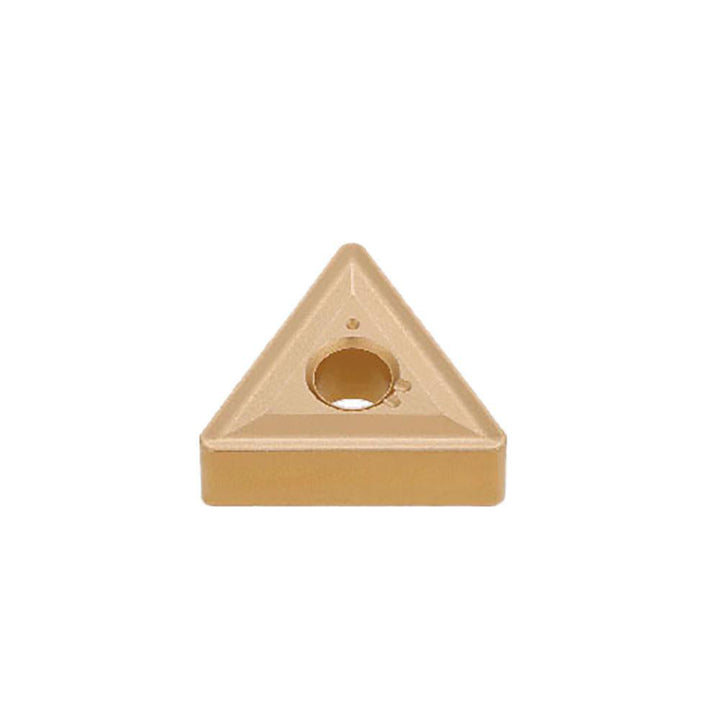

TNMG 432 Carbide Insert, Grade T5125, TiCN - Tungaloy 6853027

Tungaloy

TNMG 432 Carbide Insert, Grade T5125, TiCN - Tungaloy 6853027

MFR# 6853027ISO/ANSI# TNMG 432Series TNMG

$17.39List $22.30 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeTriangle
GradeT5125
MaterialCarbide
CoatingTiCN

Description

The Tungaloy 6853027 is a TNMG 432 carbide indexable insert, grade T5125, TiCN coated. Suited for cast iron.

Specifications

Chip breakerCommon
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2030
Included angle60
Industry standard numberTNMG 432
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.8660
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Iso codeTNMG 432
Length range0.7000 - 10.0000
Manufacturers catalog number6853027
Manufacturer gradeT5125
Material gradeK15; K30
Maximum depth of cut0.2362
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges6
Primary workpiece materialCast Iron
RakeNegative
Rake angle-15
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width0.866
Wiper edgeNo
