Tungaloy

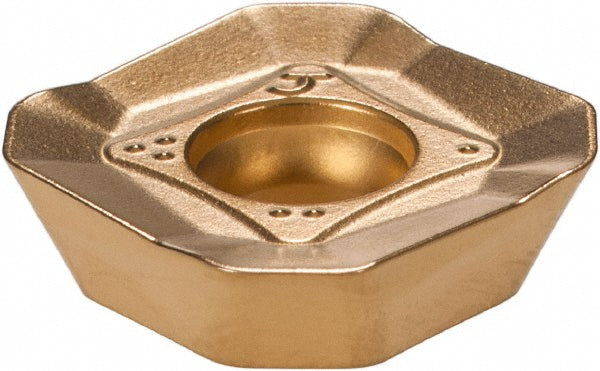

SWMT13T3AFPR-MJ T3130 Solid Carbide Insert, Grade T3130, TiCN - Tungaloy 6853858
MFR# 6853858ISO/ANSI# SWMT13T3AFPR-MJ T3130Cat# SWMT13T3AFPR-MJSeries SWMT
$15.40List $19.75
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC35/64
ShapeSquare
GradeT3130
MaterialSolid Carbide
CoatingTiCN
Description
The Tungaloy 6853858 is a SWMT13T3AFPR-MJ T3130 solid carbide indexable insert, grade T3130, TiCN coated. Suited for steel, stainless steel.
Specifications
Ansi codeSWMT13T3AFPR-MJ T3130
Chip breakerMJ
Coating finishTiCN
Coating processCVD
Corner radius0.0590
Cutter series compatibilityTAW13; EAW13
Cutting edge styleHoned
Included angle degree90
Inscribed circle in35/64
Inscribed circle range0.5000 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeSquare
Insert size13
Insert size code13T3
Insert styleSWMT
Iso codeSWMT13T3AFPR-MJ T3130
Length in35/64
Length range0.5000 to 0.6000
Manufacturers catalog numberSWMT13T3AFPR-MJ
Manufacturer gradeT3130
Material applicationSteel; Stainless Steel
Material gradeP20; M20
Maximum depth of cut0.1570
Multi use toolNo
Number of cutting edges4
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle18.50
Single or double sided insertSingle
StandardsISO
Thickness in5/32
Thickness range0.1500 to 0.1750
Width in35/64
