Tungaloy

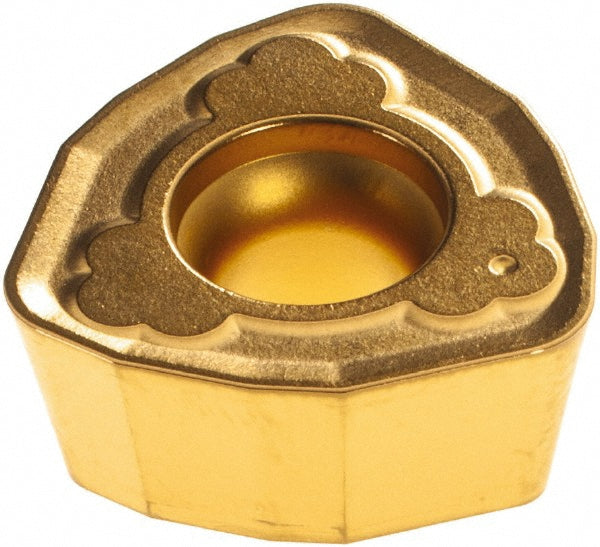

WPMT090725ZPR-ML T3130 Solid Carbide Insert, Grade T3130, TiCN - Tungaloy 6853867
MFR# 6853867ISO/ANSI# WPMT090725ZPR-ML T3130Cat# WPMT090725ZPR-MLSeries WPMT
$20.81List $26.70
Save 22%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeTrigon
GradeT3130
MaterialSolid Carbide
CoatingTiCN
Description
The Tungaloy 6853867 is a WPMT090725ZPR-ML T3130 solid carbide indexable insert, grade T3130, TiCN coated. Suited for steel, stainless steel.
Specifications
Ansi codeWPMT090725ZPR-ML T3130
Chip breakerML
Coating finishTiCN
Coating processCVD
Corner radius0.0980
Cutter series compatibilityEXP05/06/08/09; TXP05/06/08/09; XWXPR/L
Cutting edge styleHoned
Included angle degree80
Inscribed circle0.5910
Inscribed circle range0.5000 to 0.6000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeTrigon
Insert size09
Insert size code090725
Insert styleWPMT
Iso codeWPMT090725ZPR-ML T3130
Length0.7080
Length range0.7000 to 0.9000
Manufacturers catalog numberWPMT090725ZPR-ML
Manufacturer gradeT3130
Material applicationSteel; Stainless Steel
Material gradeP20; M20
Maximum depth of cut0.1180
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel
RakePositive
Relief angle11
Single or double sided insertSingle
StandardsISO
Thickness0.2760
Thickness range0.2500 to 0.3500
Width0.7080
