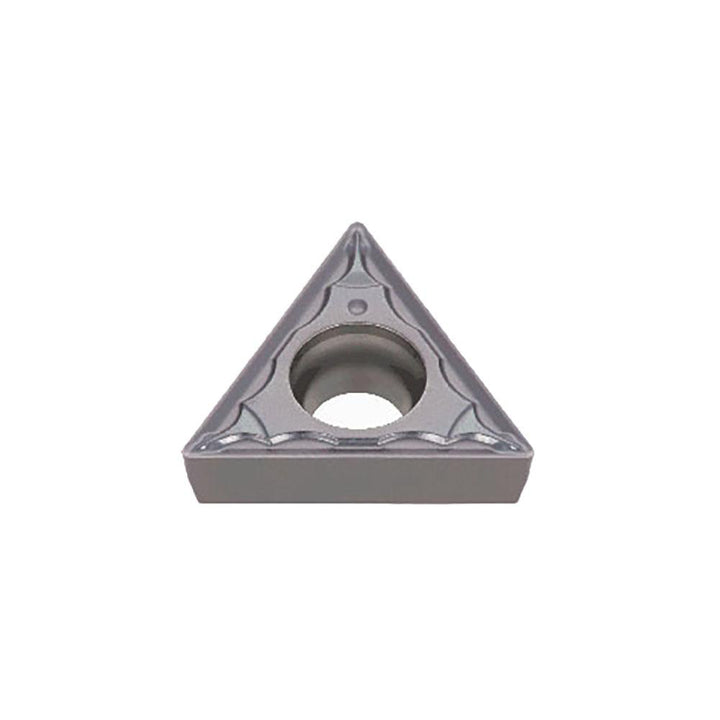

TCMT32.52PS Carbide Insert, Grade AH725, TiAlN - Tungaloy 6856671

Tungaloy

TCMT32.52PS Carbide Insert, Grade AH725, TiAlN - Tungaloy 6856671

MFR# 6856671ISO/ANSI# TCMT16T308Series TCMT-PS

$16.07List $20.25 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeAH725
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6856671 is a TCMT32.52PS carbide indexable insert, grade AH725, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi insert codeTCMT32.52
Ansi size code32.52
Chip breakerPS
Chip breaker operationFinishing; Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear
Hole diameter0.1730
Included angle60
Industry standard numberTCMT 32.52 PS
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6500
Insert materialCarbide
Insert shapeT - Triangle
Insert size code32.52
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT32.52PS
Iso insert codeTCMT16T308
Iso size code16T308
Length range0.6500 - 0.7000
Manufacturers catalog number6856671
Manufacturer gradeAH725
Material gradeP15; P30; M15; M30; K25; K30; S15; S25
Maximum depth of cut0.0984
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle10
Relief angle7
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.6500
Wiper edgeNo
