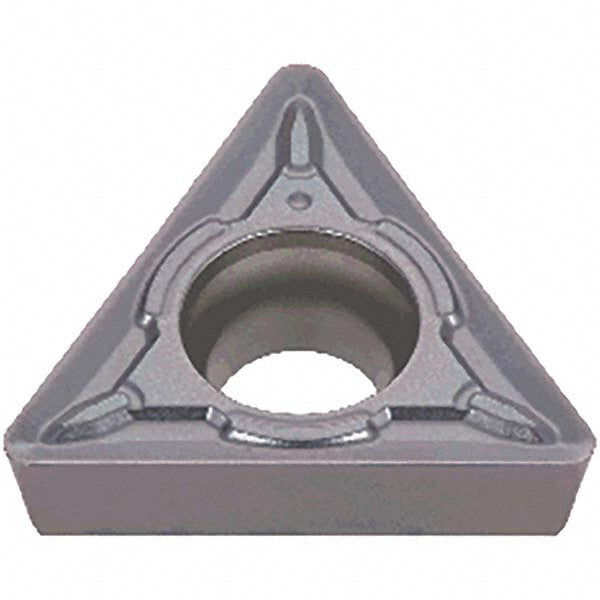

TPMT 16T304 Carbide Insert, Grade AH725, TiAlN - Tungaloy 6856730

Tungaloy

TPMT 16T304 Carbide Insert, Grade AH725, TiAlN - Tungaloy 6856730

MFR# 6856730ISO/ANSI# TPMT16T304Series TPMT-PM

$15.79List $20.25 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeT - Triangle
GradeAH725
MaterialCarbide
CoatingTiAlN

Description

The Tungaloy 6856730 is a TPMT 16T304 carbide indexable insert, grade AH725, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi insert codeTPMT32.51
Ansi size code32.51
Chip breakerPM
Chip breaker operationFinishing; Medium Machining
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear
Hole diameter0.1730
Included angle60
Industry standard numberTPMT 32.51 PM
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6500
Insert materialCarbide
Insert shapeT - Triangle
Insert size code32.51
Insert styleTPMT
Insert thickness in5/32
Iso codeTPMT 16T304
Iso insert codeTPMT16T304
Iso size code16T304
Length range0.6500 - 0.7000
Manufacturers catalog number6856730
Manufacturer gradeAH725
Material gradeP15; P30; M15; M30; K25; K30; S15; S25
Maximum depth of cut0.1181
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle8
Relief angle11
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width0.6500
Wiper edgeNo
