Tungaloy

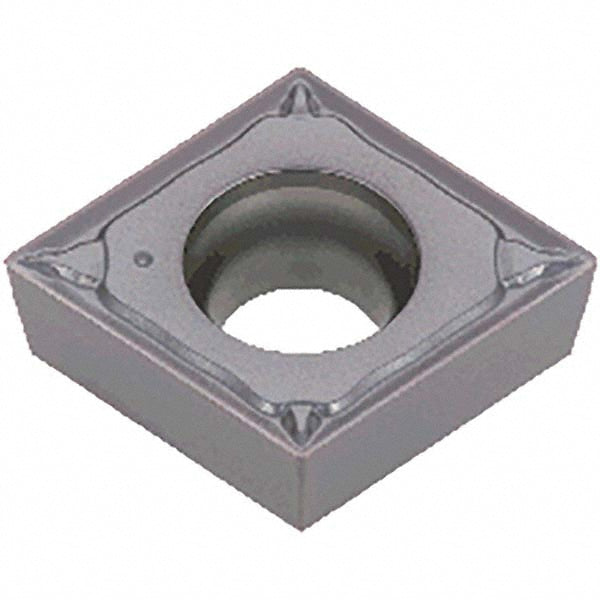

CCMT32.50.5PS Carbide Insert, Grade AH725, TiAlN - Tungaloy 6856763
MFR# 6856763ISO/ANSI# CCMT 32.50.5 PSSeries CCMT-PS
$14.93List $19.15
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeAH725
MaterialCarbide
CoatingTiAlN
Description
The Tungaloy 6856763 is a CCMT32.50.5PS carbide indexable insert, grade AH725, TiAlN coated. Suited for steel, stainless steel, cast iron, non-ferrous metal, superalloys & titanium, hard material.
Specifications
Chip breakerPS
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1730
Included angle80
Industry standard numberCCMT 32.50.5 PS
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3820
Insert materialCarbide
Insert shapeDiamond
Insert size code32.50.5
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT32.50.5PS
Length range0.3000 - 0.4000
Manufacturers catalog number6856763
Manufacturer gradeAH725
Material gradeP15; P30; M15; M30; K25; K30; S15; S25
Maximum depth of cut0.0984
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Rake angle10
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
